1. Why a Patented Rechargeable Motor System Elevates RV Privacy

In tight camper vans, every hinge arc and protruding handle steals room from people and pets. A cordless roller partition fixes that—provided it survives vibration, grades, and nightly cycles without cords to snag or rattle. DOSRON integrates the lift function inside the tube and adds a Patented Rechargeable Motor System that runs on everyday USB power. Push/pull the bottom rail for manual control; tap a remote when hands are busy. Either way, the blind parks flush, clears the aisle, and flips “living room” to “private bunk” in seconds.

1.1 Design Pillars for RV Use

• Cordless by design: No loops to tempt pets or toddlers; nothing to snag jackets or cookware.
• Hold-at-any-position: Spring-guided balance and tuned friction stabilize the partition at any height—even on grades.
• Smooth & quiet: Damped travel minimizes bounce-back at the top stop; night arrivals stay discreet.
• Rechargeable ease: USB-C/5V charging from the van’s port, a power bank, or solar; no 12V tapping needed.
• Manual failover: If power is low, the spring architecture still works by hand—no downtime.

2. System Architecture: Spring Mechanics + Patented Rechargeable Motor System

DOSRON’s 38 mm spiral-spring stores energy while lowering and releases it during lift. The geometry is tuned so torque output tracks the mass of common RV panels (PVC, frosted acrylic, privacy fabrics). Adding our Patented Rechargeable Motor System provides low-noise assistance without re-wiring the vehicle bus: it runs at 5V/2A, sips power, and sleeps for months on standby. Because the spring still does the heavy lifting, battery stress stays low and service intervals stretch.

2.1 Balance, Damping & Fine-Tuning

• Pre-tension: Bench-set turns so the blind holds at mid-drop with your selected panel; verify again after mounting.
• Guidance: Keep tube and brackets coaxial; a 1–2 mm shim often removes squeaks from shell flex.
• Damping: Managed friction tames rebound at the top stop and prevents creeping on sloped campsites.
• Seals & brushes: Edge seals block light/splash and absorb micro-rattle for a “solid door” feel.
• Latching: A discreet magnetic catch parks the bottom rail during travel days.

3. Specification — Patented Rechargeable Motor System (RV Build)

The hybrid design keeps you operational when power is scarce: the spring provides mechanical balance, while the Patented Rechargeable Motor System adds fingertip control and remote convenience without touching the van’s 12 V circuits.

3.1 38 mm Spring Selection (RV Reference)

Use the matrix to match series, maximum tension, and itinerary (drop). For wet-bath doors or heavier panels, pick the upper band; for berth privacy and galleys, mid-band feels best with soft seals.

4. Everyday Use with a Patented Rechargeable Motor System

With manual or motor input, the blind behaves the same: steady travel, predictable stops, low noise. Parents can segment bunks for naps; cooks can shield the galley from spray; night owls can close a micro-office without waking the crew. USB charging means you top up from a power bank while hiking—no range anxiety, no fuse taps.

5. Safety, Installation & Maintenance

Safety in a moving home is cumulative—dozens of small choices. A Patented Rechargeable Motor System contributes by removing a hazard vector (cord loops), de-cluttering aisles, and making partitions effortless to use—which means they actually get used.

5.1 Built-In Safety Advantages

• No exposed cords: Eliminates a common entanglement risk; friendlier to pets and toddlers.
• Predictable stops: Hold-any-position stability reduces unintended drops and finger pinches.
• Low noise: Damped motion preserves rest and cuts driver fatigue on long days.
• Manual failover: Spring mechanism keeps working even with a flat battery.

5.2 Installation Guidance

• Structure first: Mount to metal frames or backed cabinetry; use rivnuts/expansion inserts on thin skins.
• Measure twice, shim once: Correct shell flex with shims; 1–2 mm makes an audible difference.
• Edge seals: Add brush/rubber lips to tame light leaks, splash, and micro-rattle.
• Power routing: Keep USB leads clear of moving parts; right-angle connectors with strain relief work best.
• Bottom-rail safety: Rounded profiles are kinder to knees and elbows in tight quarters.

5.3 Routine Maintenance

• Quarterly function check: Raise/hold cycles and latch confirmation.
• Dust control: Wipe guides and seals; a touch of dry, silicone-safe lube eliminates squeak.
• Battery care: Top up every six months; LED indicator confirms status.

6. Where a Patented Rechargeable Motor System Shines

7. Layout Planning for Iveco, Maxus, and Transit Platforms

Each shell has quirks—rib spacing, recess depths, sliding-door geometry—that steer where a blind fits best. A practical template:

1. Forward zone (galley): L-shaped counter behind the driver; mid-tension blind isolates the lounge at night and contains odors.

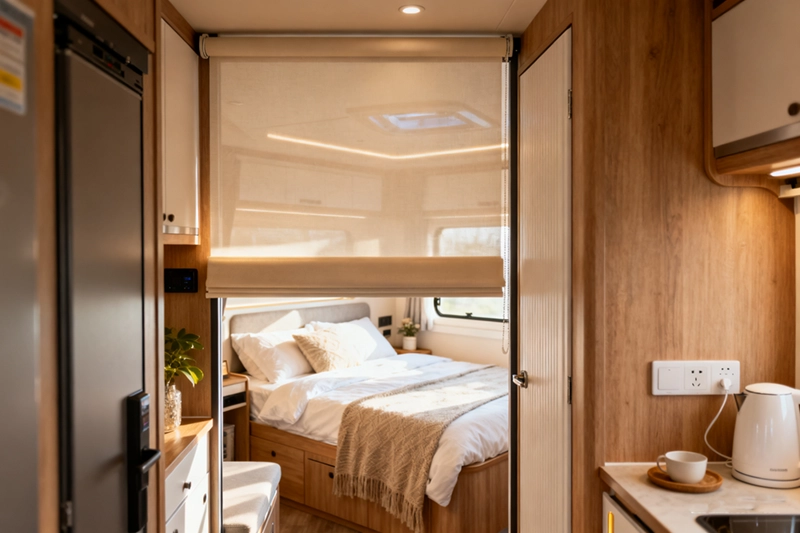

2. Mid zone (berth): Soft-touch fabric with brush seals; magnetic catch holds during driving.

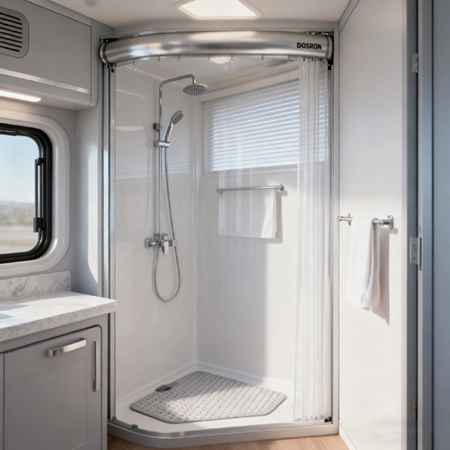

3. Aft zone (wet-bath): Higher-tension models with splash-resistant panels; add threshold and exhaust fan.
4. Storage nooks: Narrow blinds hide utility panels or pet spaces without bulky cabinet doors.

Expect fewer swing conflicts, a calmer soundscape, and faster “mode switching” even with kids and pets on board.

8. Cost, Weight, and ROI Considerations

Evaluate vs. curtains or sliding doors on three axes:

• Space & weight: Tube + panel weighs far less than framed doors and eliminates floor tracks—payload reclaimed.
• Complexity: No hinge alignment or seasonal warping; the mechanism lives inside the tube.
• Habits: The easier a partition is to use, the more often it’s used—better sleep, less clutter, fewer family negotiations.

With the Patented Rechargeable Motor System, you avoid 12 V taps, preserve warranties, and charge from USB or solar—ideal for rental fleets and DIY builds alike.

9. Field Notes: Common Mistakes and Easy Wins

• Mistake: mounting to thin ply only. Fix: add hidden aluminum angle or rivnuts into ribs; you’ll hear the silence over potholes.
• Mistake: oiling squeaks. Fix: squeaks = misalignment or dry seals; realign first, then a touch of dry lube on seals.
• Mistake: one-size bottom rails. Fix: choose profiles for users: rounded for families, flat with finger recess for premium adult rigs.
• Win: pre-wire one USB-C near the blind. Manual today, motor tomorrow—two-minute upgrade.
• Win: micro night-light at the latch. Sub-0.5 W LED reduces 2 AM fumbling and feels premium.

Internal Links

• Electric Motorized Cordless Spring Mechanism
• R Series Cordless Roller Accessories
• L Series Cordless Accessories
• Contact DOSRON

Related FAQ

1) What makes the Patented Rechargeable Motor System different from 12 V motors?

It runs on 5 V USB power with months-long standby, avoiding fuse taps and complex wiring while keeping manual failover via the spring.

2) Will it hold position on slopes?

Yes—proper pre-tension and alignment allow hold-any-position even on grades; add a magnetic catch for extreme angles during travel.

3) Can I retrofit an existing curtain opening?

In most cases yes: replace the rod with a tube assembly, add brackets and edge seals, and position a discreet latch point.

4) What panels work best for wet-bath partitions?

Aluminum frame with PVC or frosted acrylic; specify higher-tension springs from the matrix.

5) How often do I charge the battery?

Typical users top up every few months. Because the spring provides the lift, the motor’s energy demand is low.

6) Is child and pet safety improved?

Yes—no exposed cords; rounded rail profiles further reduce bumps in tight cabins.

7) What tube sizes are supported?

32/38/40/45/50 mm per the specification; 38 mm is the RV sweet spot for strength vs. weight.

8) Can DOSRON customize adapters and rails?

Absolutely—custom tube lengths, torque bands, adapter interfaces, and rail profiles for common van shells.

9) How loud is the system in use?

Damped travel and tuned friction keep noise low; most sound comes from panel seals contacting frames.

10) What’s the warranty?

Five years, with service-light design aimed at long cycle life in mobile environments.
