Spring System Components Suitable for Cordless Bamboo Roman Blinds
Quick Summary
Spring system components suitable for cordless bamboo Roman blinds are engineered modules that replace
exposed pull cords with an internal spring-balanced architecture. DOSRON’s component set includes a
spring box, drum & hub, guide rails, and mounting adapters optimized for bamboo Roman panels
between 500–2400 mm wide and up to 6 kg panel mass. The system delivers hold-at-any-position performance,
low operating force, and long life beyond 20,000 cycles, making it ideal for residential, hospitality, and
designer projects targeting cordless, safer window coverings.
Product Overview
Spring System Components for Cordless Bamboo Roman Blinds
DOSRON designs spring system components suitable for cordless bamboo Roman blinds to handle the higher
weight and stiffness of bamboo slats compared with textile Romans. The system is built around a
spiral spring box that counterbalances the panel mass so users can lift and lower the blind with
a typical operating force of 15–25 N at the bottom rail, even for widths above 1800 mm.
The modular layout allows OEMs and shade manufacturers to integrate the spring box into their existing
bamboo Roman headrails or pair it with DOSRON’s
cordless spring systems for roller and zebra blinds when building a unified cordless product family.
 |
 |
| Item | Typical Range | Notes |
|---|---|---|
| Recommended panel width | 500–2400 mm | Single spring system per panel; double box optional for extra-wide sets. |
| Recommended panel weight | 2–6 kg | Based on typical bamboo Roman constructions. |
| Target operating force | 15–25 N | At the center of the bottom rail at full drop. |
| Spring life | ≥ 20,000 cycles | Full up–down cycles under rated load. |

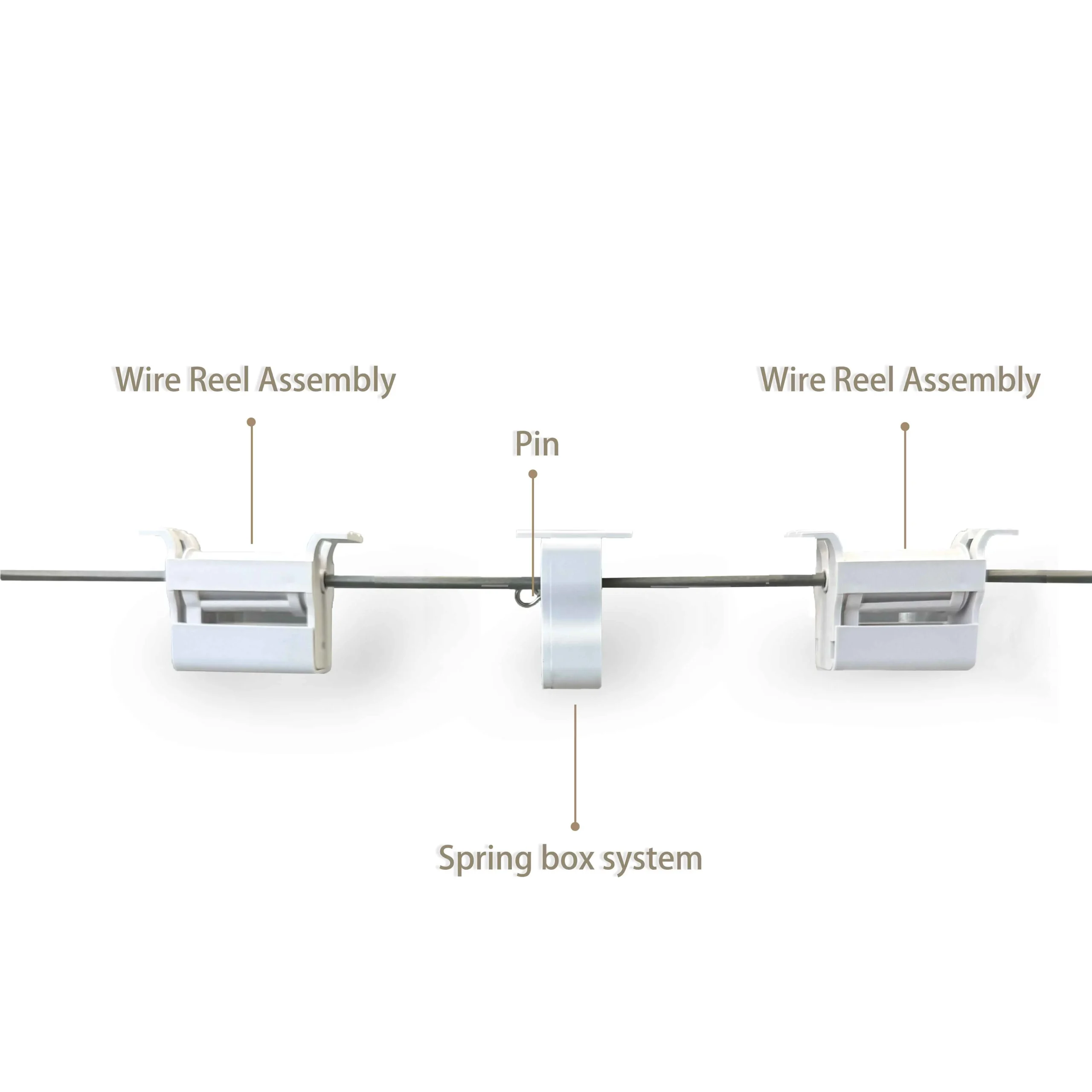

Component Architecture & Key Specifications
2.1 Spring Box for Bamboo Roman Blinds
The spring box is the core of the spring system components suitable for cordless bamboo Roman blinds.

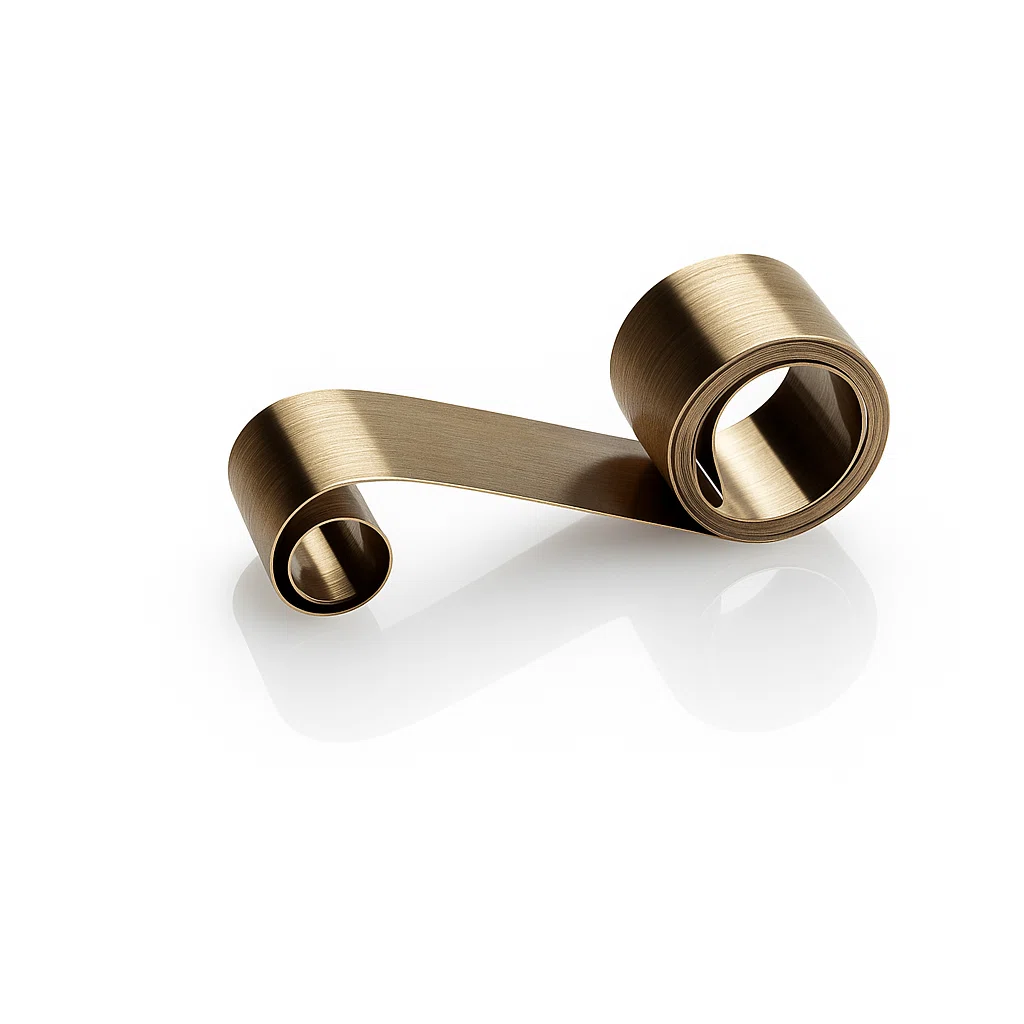

It houses a pre-tensioned spiral spring that stores and releases energy to balance the bamboo panel weight.
DOSRON uses 301 stainless steel spring strip and POM engineering plastic housing to maintain consistent
torque output and low friction.
| Parameter | Value | Condition |
|---|---|---|
| Spring material | 301 stainless spring steel | Heat-treated, anti-fatigue. |
| Housing material | POM (acetal) engineering plastic | Low-friction, high dimensional stability. |
| Rated torque range | 0.8–2.5 Nm | Configured per panel weight and width. |
| Torque tolerance | ±5 % | Across 10–90 % travel range. |
2.2 Drum & Hub Interface
The drum & hub interface connects the spring box to the bamboo Roman lift tape or cord management
hardware. DOSRON offers round and oval profile options to fit OEM headrails, with standard hub diameters
of Ø28 mm and Ø32 mm for compact frames.
| Option | Diameter / Profile | Use Case |
|---|---|---|
| Standard drum | Ø28 mm | Narrow recess, small–medium bamboo Romans. |
| High-load drum | Ø32 mm | Wider or heavier panels up to ~6 kg. |
2.3 Guide Rails, Bushings & Noise Control
To keep the spring motion aligned and quiet, POM guides and nylon bushings are integrated around
the drum and headrail slots. This reduces rattle from bamboo slats, keeping operating noise typically below
40 dB in residential rooms.
2.4 Mounting Adapters for Bamboo Roman Headrails
DOSRON can customize snap-in adapters so that the same spring system components are suitable for
cordless bamboo Roman blinds built on wood, aluminum, or steel headrails. Typical adapter wall thickness
is 0.8–1.2 mm, with slot widths from 10–16 mm.

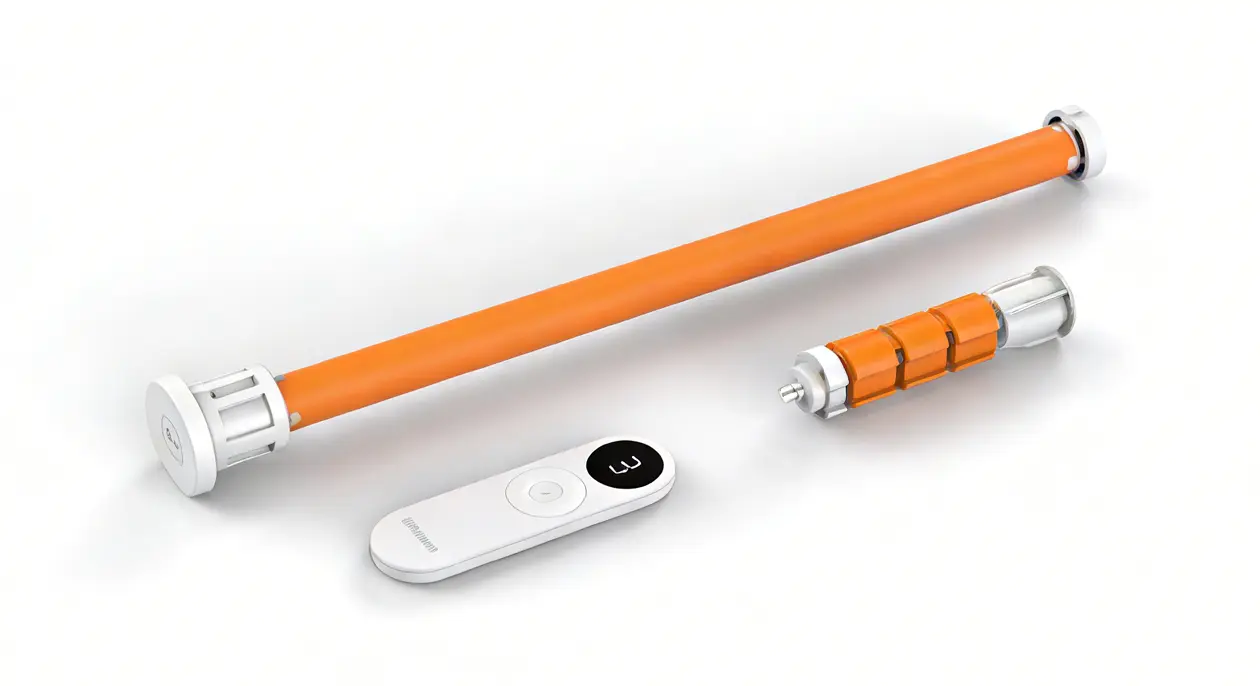

2.5 Optional Motor-Ready Variant
For projects mixing manual and motorized bamboo Romans, the architecture can be aligned with
DOSRON DT25 cordless tubular motor series, so the same headrail and brackets
serve both manual spring systems and cordless tubular motors. This simplifies inventory and sampling
for global OEM programs.
 |
panel loads and duty cycles:
- Cycle life: ≥ 20,000 full cycles under rated load without loss of holding torque beyond ±10 %.
- Noise level: < 40 dB at 1 m distance in a typical living room acoustic environment.
- Holding performance: Stable hover at any position between 10–90 % of travel, no drift > 10 mm over 24 hours.
- Temperature range: 0–40 °C indoor use, suitable for most residential and hospitality applications.
- Safety focus: Fully internalized lifting force, no exposed operating cords for everyday use.
For brands pursuing child-safe positioning, DOSRON recommends pairing this system with cordless product
guidelines and educational content such as our blog
“What Buyers Need to Know About Cordless Blind Mechanisms Before Sourcing”.
Sizing Guide for Spring System Components Suitable for Cordless Bamboo Roman Blinds
To choose the correct spring box and drum combination, DOSRON uses three primary inputs: finished width,
finished drop, and panel mass. The table below shows typical pairings.
| Panel Width (mm) | Panel Mass (kg) | Recommended Spring Box | Drum Diameter | Notes |
|---|---|---|---|---|
| 500–1200 | 2–3 | Light-duty bamboo Roman spring box | Ø28 mm | Single box per panel. |
| 800–1800 | 3–4.5 | Standard bamboo Roman spring box | Ø28–32 mm | Most living room and bedroom windows. |
| 1200–2400 | 4.5–6 | High-load bamboo Roman spring box | Ø32 mm | Optional twin-box configuration for very wide panels. |
How to Request a Spring Mapping
For accurate selection, send DOSRON the following:
- Width × drop of the bamboo Roman blind.
- Estimated panel mass or material specification (bamboo slat thickness, density).
- Planned headrail profile drawing or photos.
Our engineering team will recommend a spring system configuration and cross-reference compatible
components with other cordless models on your line, so your bamboo Roman project remains aligned with
existing R-Series cordless spring systems or tubular motor ranges.

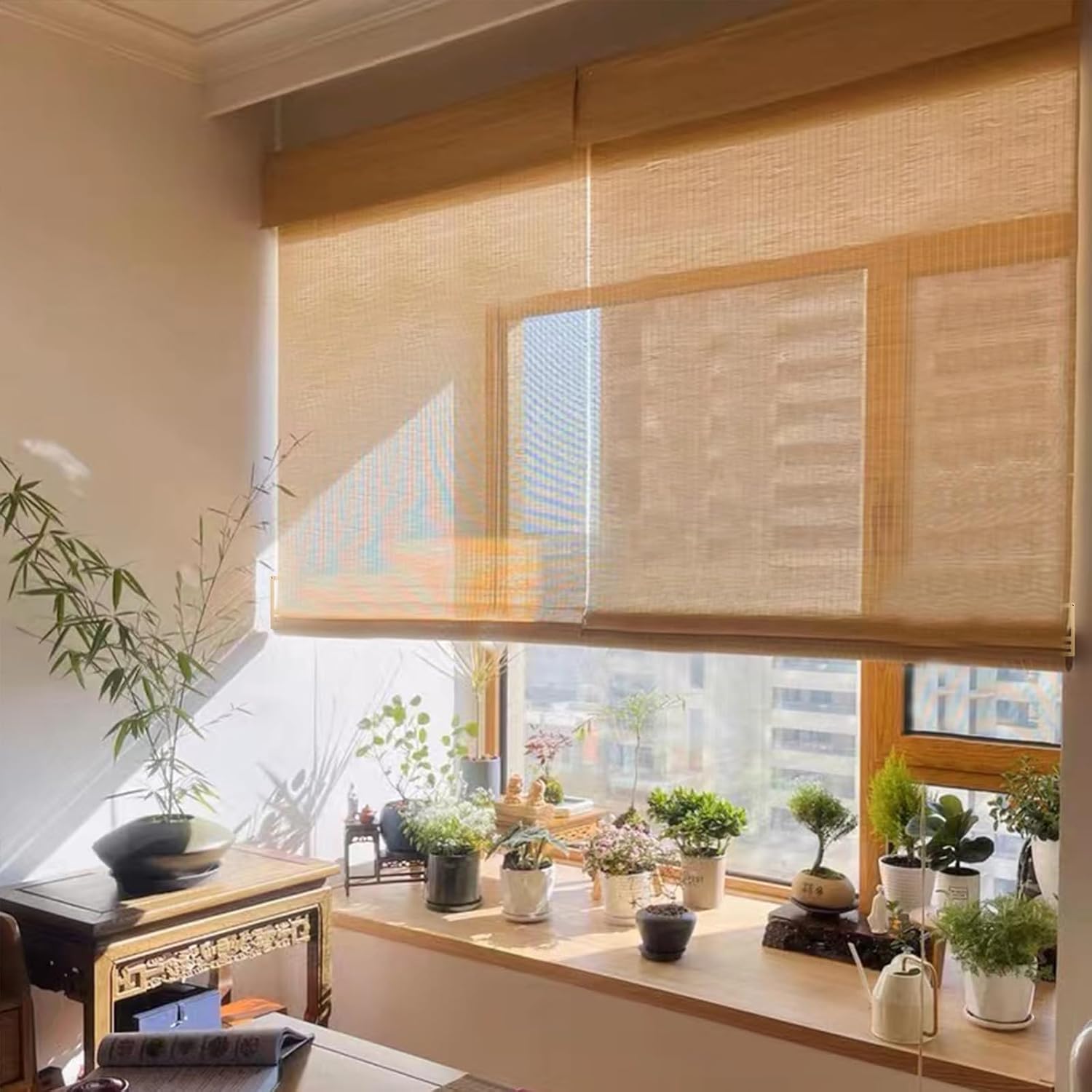

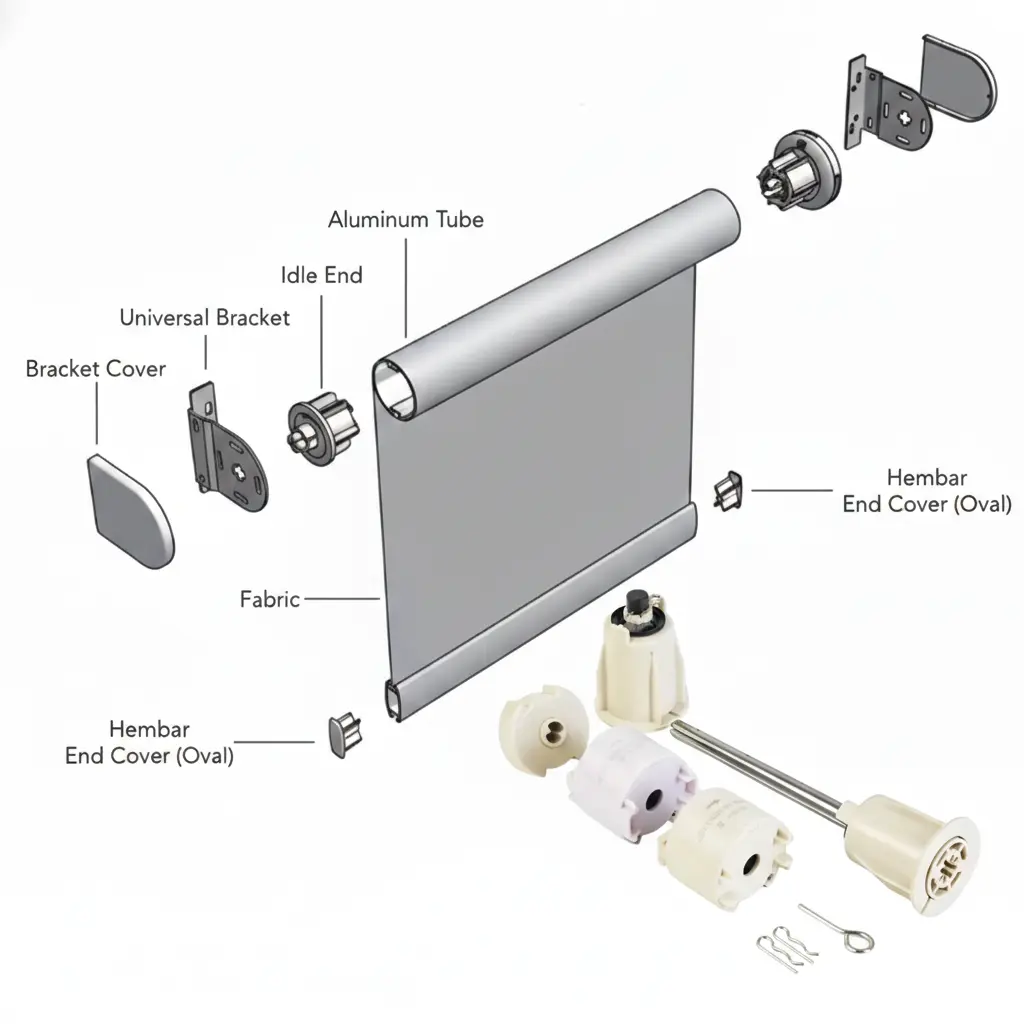

Application Examples for Cordless Bamboo Roman Spring Systems
 |
 |
“How Cordless Spring Systems Help Shade Manufacturers Cut Energy Costs and Improve Efficiency”
, reinforcing the technical benefits behind the visuals.
FAQs – Spring System Components for Cordless Bamboo Roman Blinds
1. What makes these spring system components suitable for cordless bamboo Roman blinds?
They are calibrated for the higher mass and stiffness of bamboo panels, with torque ranges from
0.8–2.5 Nm, reinforced housings, and guide hardware that controls noise and rattle in real use.
2. Can I use the same headrail for both spring systems and tubular motors?
Yes. By aligning to DOSRON’s DT25 cordless tubular motor architecture,
your bamboo Roman headrail can be engineered to accept either a manual spring box or a tubular motor,
using common brackets and tube diameters.
3. What is the recommended maximum panel weight?
For standard single-spring configurations, we recommend up to 6 kg per bamboo Roman panel under normal
indoor conditions. Heavier panels may require dual-box or motorized solutions.
4. How do I fine-tune the balance on site?
Our spring system components allow pre-tension adjustments at the drum interface. Installers can add or
remove turns according to our setup sheet so that the bamboo Roman blind holds at mid-drop without creeping.
5. Are these components compatible with existing bamboo Roman hardware?
In most cases yes. By sharing basic dimensions and headrail drawings, DOSRON can propose adapter pieces
and confirm whether our spring system components suitable for cordless bamboo Roman blinds will drop into
your existing profiles.
Field Insight — From Components to a Cordless Bamboo Roman Family
For many brands, bamboo Romans are an important “texture” product that must still align with a broader
cordless strategy. Choosing spring system components suitable for cordless bamboo Roman blinds is not only
about lifting the panel; it is about platform consistency and long-term cost control.
- Shared architecture: Aligning bamboo Romans with your roller, zebra, and honeycomb cordless systems
simplifies brackets, tubes, and packaging. - Predictable performance: Quantified torque windows and cycle life give your product managers confidence
when publishing specs and warranties. - Better storytelling: Internal links between product pages and technical blogs explain to buyers why
your cordless bamboo Romans feel stable, quiet, and safe to use. - Upgrade paths: A motor-ready architecture lets you offer both spring-balanced and motorized bamboo
Romans on the same project without redesigning hardware.
