Motor Venetian Blind Accessories for Cordless Lift Systems
Integrate motorized tilt with cordless lift in one clean, child-safe Venetian blind platform.
 |
 |
Quick Summary
The DOSRON Motor Venetian blind accessories for cordless lift systems form a modular hardware kit
that lets OEM brands build cordless faux-wood and aluminum Venetian blinds with
spring-assisted lift and motorized tilt in one headrail.
By combining our constant-force spring modules, tilt motors, gear sets, brackets and wiring harnesses, fabricators
can upgrade legacy corded Venetian programs into child-safe cordless lift systems that still
deliver precise, quiet louvers control via remote, wall switch or smart home hubs.
1. Product Overview
DOSRON’s Motor Venetian blind accessories for cordless lift systems are designed for
factories that want to keep the bottom-rail lift cordless and manual, while adding
motorized tilt for better light control, convenience and premium positioning.

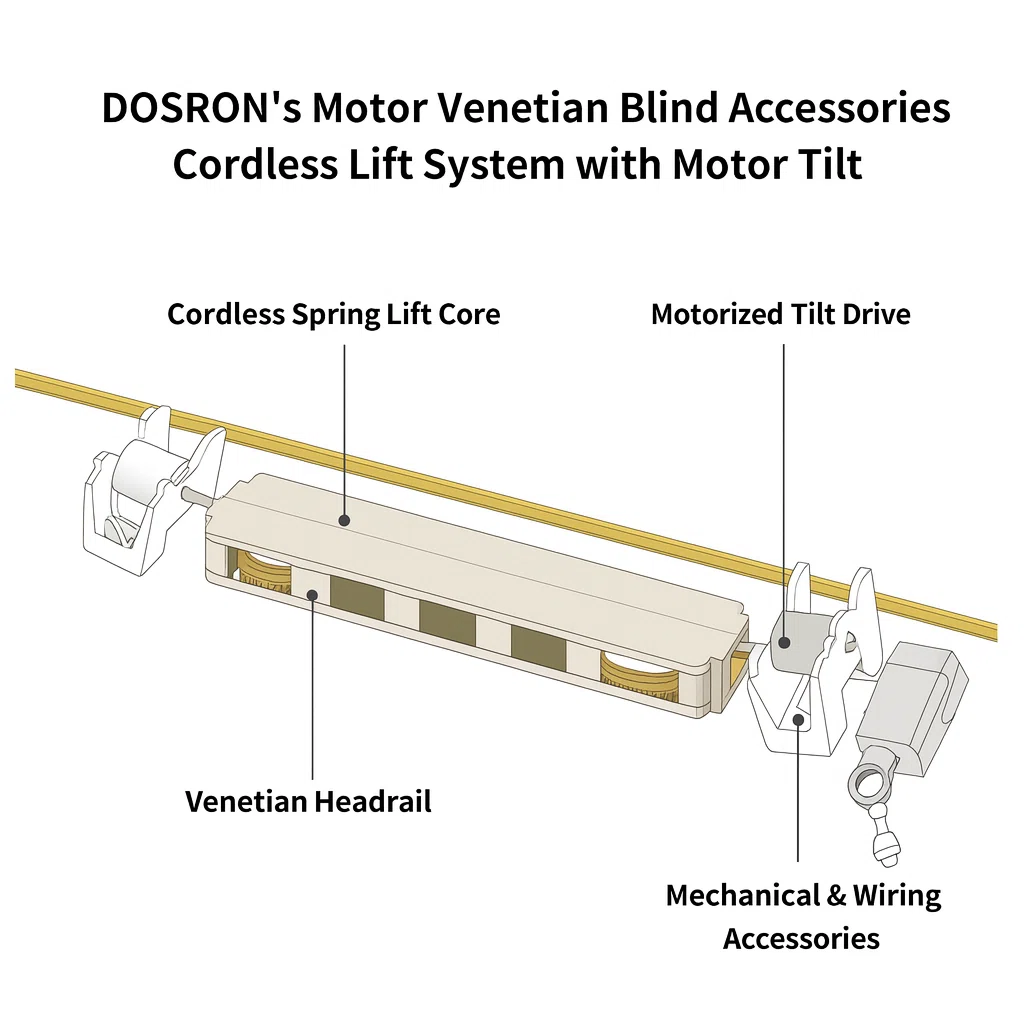

The platform integrates three subsystems inside a single Venetian headrail:
- Cordless spring lift core — balances the slat stack weight so users can lift and lower the blind by hand with no exposed lift cords.
- Motorized tilt drive — a low-voltage motor and gearbox that rotates the tilt rod for precise louver angle control.
- Mechanical & wiring accessories — brackets, couplers, end-caps and plug-in harnesses that make assembly repeatable on the factory line.
2. How the System Works with Cordless Lift
2.1 Cordless Lift Path

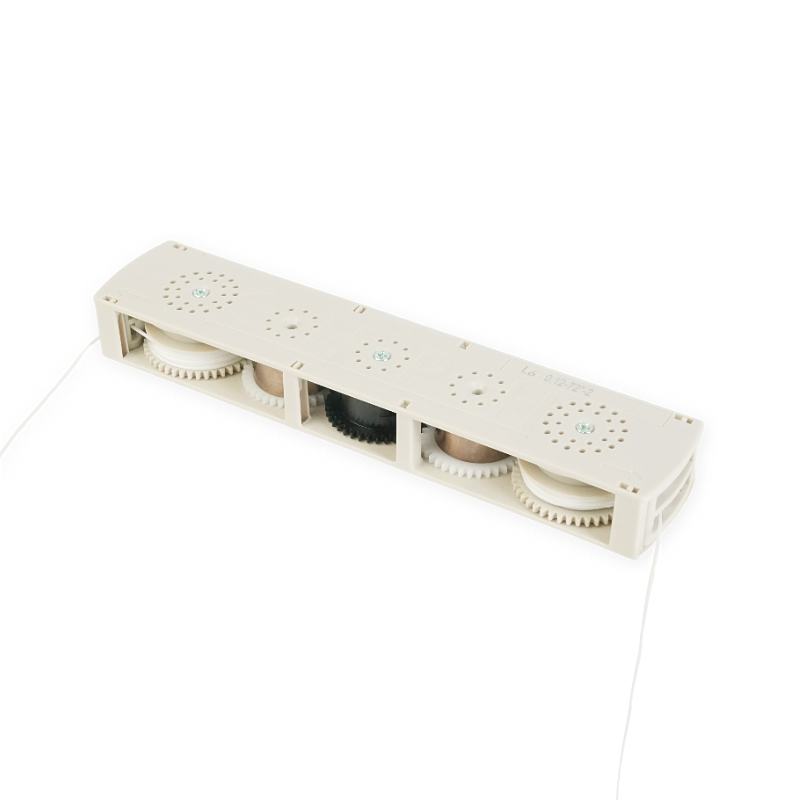

The cordless lift system uses a tuned constant-force spring or spiral spring core
in place of traditional cord locks. The slat stack is lifted by hand from the bottom rail, and
the spring stores energy to counter-balance the weight.
- Hover-at-any-height bottom rail with no drifting.
- No lift cords visible on the front of the blind for child and pet safety.
- Lift feel can be tuned by spring model and pre-tension to match different slat materials.
2.2 Motorized Tilt Path
The motor Venetian blind accessories add an in-headrail motor linked to the tilt rod.
The lift and tilt paths are fully separated:
- Users tilt louvers by remote control, wall switch or app.
- The motor drives only the tilt rod, keeping lift loads off the motor.
- This reduces motor torque requirements, extends battery life and keeps the blind quiet.
DOSRON’s low-voltage motors typically run at 5 V, with
2600–5200 mAh Li-ion batteries, 0.4–0.7 Nm torque and IP20 protection,
giving a stable base for Venetian tilt applications. :contentReference[oaicite:0]{index=0}
3. Key Features & Benefits
3.1 Core Features
- Hybrid design: Cordless manual lift + motorized tilt in a single headrail.
- Child-safe architecture: No lift cords or chains; only the slat pack and bottom rail are touched.
- Quiet tilt motion: Optimized gear ratio and damping to protect acoustic comfort in living rooms and bedrooms.
- Modular accessories: Clip-on brackets, couplers and adaptors to fit common faux-wood and aluminum Venetian profiles.
- Serviceable wiring: Plug-in harnesses and clear routing paths along the headrail for fast assembly and easy after-sales service.
- Smart home ready: Works with multi-channel remotes, gateways and timers in the DOSRON ecosystem.
3.2 Value for OEM Brands
- Fast upgrade path from corded lift + wand tilt to cordless lift + motorized tilt, without re-inventing the headrail.
- Premium ASP: Position your Venetian blinds as a step up from standard cordless or standard motor-only lines.
- Simplified SKU logic: Same motor Venetian blind accessories kit can serve multiple slat widths and heights with spring tuning.
- Compliance support: Easier to align with child-safety standards by removing lift cords from the design.
4. Technical Specifications
| Item | Typical Value / Range | Notes |
|---|---|---|
| Compatible blind type | Faux-wood & aluminum Venetian | Horizontal slats with lift + tilt |
| Recommended max blind width | Up to 2,400 mm | Depending on slat weight & spring selection |
| Recommended max blind height | Up to 3,000 mm | Based on spring torque band and lift feel |
| Motor torque (tilt) | 0.4–0.7 Nm | Typical DOSRON low-voltage motor range :contentReference[oaicite:1]{index=1} |
| Rated motor speed | 25–28 rpm | Optimized for quiet tilt movement :contentReference[oaicite:2]{index=2} |
| Battery capacity options | 2,600 mAh / 5,200 mAh | Ensures several months of typical tilt use per charge :contentReference[oaicite:3]{index=3} |
| Supply / charging voltage | 5 V DC | USB Type-C charging; supports adapter / power bank / solar input :contentReference[oaicite:4]{index=4} |
| Protection class | IP20 | Indoor use in dry rooms :contentReference[oaicite:5]{index=5} |
| Operating temperature | 0 °C – 40 °C | Standard interior environment range :contentReference[oaicite:6]{index=6} |
| Remote channels | 1–15 channels + “ALL” mode | Multi-blind control per room or façade :contentReference[oaicite:7]{index=7} |
Final specification ranges are confirmed per project after DOSRON reviews target slat sizes, materials and
required cordless lift feel.
5. Compatibility & Typical Applications
5.1 Compatible Cordless Lift Systems
The Motor Venetian blind accessories for cordless lift systems are engineered to align with
DOSRON’s existing cordless spring unit devices and cordless spring boxes.
- Cordless spring systems for faux-wood Venetians with 2″ / 50 mm slats.
- Cordless spring systems for aluminum Venetians with 25 mm or 35 mm slats.
- Hybrid headrail designs where the same spring logic is used for both Venetians and roller shades.
5.2 Application Scenarios
- Living rooms & family rooms: Cordless lift for safety, motorized tilt for daily comfort.
- Bedrooms & nurseries: Quiet, controlled tilt with no dangling cords near beds or cribs.
- Home offices: One-touch tilt presets for glare control during video calls.
- Hospitality & serviced apartments: Clean façade, easy operation for guests.
- Retail & dealer programs: Upgrade path for existing Venetian lines without fully retooling headrails.
6. Installation & Assembly Guidelines
6.1 Factory Assembly
- Install the cordless spring lift core and bottom-rail connectors according to the torque sheet.
- Mount the tilt motor and gearbox at the drive side of the headrail.
- Connect the tilt rod via supplied adaptors and couplers to minimize backlash.
- Route wiring along pre-defined channels and plug into the battery or power input.
- Run a full-cycle test: lift, lower and tilt several times to confirm balance and quiet motion.
6.2 On-Site Commissioning
- Mount the Venetian blind in the window; verify the headrail is level.
- Check cordless lift feel and adjust spring pre-tension if needed.
- Pair the blind with the multi-channel remote and set favorite tilt positions.
- Demonstrate to the homeowner: lift by hand, tilt via remote, no lift cords required.
- Explain basic charging instructions when battery-powered tilt motors are used.
7. OEM / ODM Support from DOSRON
DOSRON supports your Motor Venetian blind accessories for cordless lift systems program with
engineering and commercialization services:
- Headrail interface drawings and sample kits for your existing Venetian profiles.
- Spring selection and pre-tension recommendations based on slat weight and target sizes.
- Tilt motor sizing checks and duty-cycle recommendations for different regions and usage patterns.
- Assembly checkpoints, torque-curve sampling and batch traceability documentation.
- Marketing-ready content and training material for dealers and installation teams.
For new projects, share your width × drop range, slat material and target markets, and DOSRON
can propose a matching combination of motor Venetian blind accessories, cordless lift springs and control
options.
8. Quality, Testing & Compliance
Each batch of motor Venetian blind accessories for cordless lift systems is produced under
controlled processes with:
- Cycle testing on representative blinds for lift balance and tilt repeatability.
- Noise checks to protect quiet operation in bedrooms and living spaces.
- Visual and functional inspection of brackets, couplers and headrail interfaces.
Cordless lift and motorized tilt solutions can be aligned with major child-safety frameworks when combined
with appropriate system design and labeling. DOSRON can provide component-level test data for your
internal compliance documentation.
