Quick Summary
The DOSRON R38 Customized Cordless Spring Systems use a compact 38 mm cordless mechanism tailored for zebra fabrics. With POM engineering plastic guides and a 301 stainless-steel spiral spring, the system delivers stable torque, precise hovering, and low-noise motion. OEM/ODM options include customized torque curves, headrail interfaces, and mold variants—ideal for residential and light-commercial installations where stripe alignment and reliability matter.
Overview of the Cordless Spring Systems for Zebra Blinds
 |
 |
Redefining Smooth Control for Zebra Fabrics
The calibrated cordless spring mechanism balances fabric mass and tube inertia, achieving linear motion, crisp stop-points, and minimal drift. Lateral shift is reduced so zebra stripes remain parallel and visually clean.
Application Scenarios for the Cordless Zebra System
 |
 |

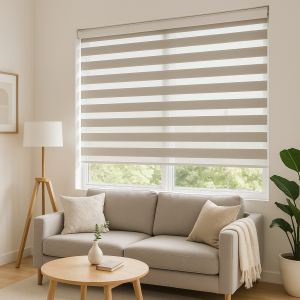

Option 1: Furniture application
- Bedrooms & Living Rooms: quiet, cordless operation with precise hovering at any height.
- Kitchens & Bathrooms: POM + stainless-steel components resist humidity and corrosion.

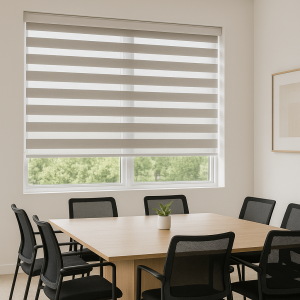

Option 2: Office & Light-Commercial
- Meeting Rooms: low-noise lift avoids distraction; stripes stay aligned for clean visuals.
- Hotels & Public Facilities: reliable balance and long service life for high-use areas.
Maintenance and Installation Guide
Installation
- Insert the 38 mm spring mechanism into the headrail.
- Align and lock end caps/adapters; ensure axial fit with the tube.
- Mount the tube + fabric assembly; verify free rotation and even fabric tracking.
- Test lift/hover/drop to confirm slip-free balance and stripe alignment.
Maintenance Tips
- Avoid extreme humidity or corrosive vapors; keep the headrail interior clean.
- Check balance periodically on wide/heavy zebra fabrics; re-tune as needed.
- No lubrication required—POM surfaces provide self-lubrication.
- Use DOSRON-certified components to maintain torque stability.
Technical Specifications of DOSRON Zebra Spring System
R38 Load-bearing Capacity of the R38 Zebra Blind Spring System
| ITEM | Spring Spec. | Spring Force by Fabric Length | Top 40CM rebound force |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36″ (91.44) |
36″ (91.44) |
48″ (121.92) |
54″ (137.16) |
60″ (152.4) |
64″ (162.56) |
72″ (182.88) |
84″ (213.36) |
86″ (218.44) |
96″ (243.84) |
|||
| 1 | 0.07*19*4000mm | 154 | 175 | 200 | 213 | 225 | 234 | 251 | 276 | 280 | 301 | 50 |
| 2 | 0.08*19*3500mm | 212 | 236 | 264 | 279 | 293 | 303 | 322 | 350 | — | — | 75 |
| 3 | 0.09*19*3500mm | 272 | 300 | 333 | 350 | 367 | 378 | 400 | — | — | — | 100 |
| 4 | 0.10*19*3500mm | 331 | 362 | 400 | 418 | 437 | 449 | — | — | — | — | 125 |
| 5 | 0.11*19*3000mm | 436 | 470 | 509 | 529 | 549 | — | — | — | — | — | 175 |
| 6 | 0.12*19*2600mm | 570 | 616 | 671 | 698 | — | — | — | — | — | — | 225 |
Notes: Values are in g (grams). Fabric length refers to the single-layer length of the zebra blind. Select spring model and quantity according to the weight of the fabric and the bottom rail.
Engineering Principle Behind the Zebra Spring Mechanism
 |
 |
How the Cordless Spring Mechanism Works
A stainless-steel spiral spring stores/releases energy to offset fabric weight and tube inertia. Compared with generic torsion solutions, the spiral geometry provides linear torque with high stability, enabling hover-at-any-position and low-noise motion. The POM housing works as a precision guide, cutting friction and vibration for long-term consistency.
Advantages of the Mechanical Cordless System
- Energy-free operation: no battery, wiring, or controller.
- Stable over time: torque consistency maintained across 10,000+ cycles (typ.).
- Low maintenance: self-lubricating POM surfaces; no grease required.
- Universal adaptability: compact 38 mm module fits tight headrails and narrow recesses.
OEM / ODM Integration
DOSRON provides engineering customization for global zebra blind manufacturers.
- Customized torque curves for specific fabrics/widths.
- Interface adaptation for different headrails and mounting profiles.
- Modular housing/mold options to meet regional design norms.
- ISO-controlled assembly with outgoing torque checks.
Key Benefits of DOSRON Cordless Zebra Mechanism
Improved Safety
The cordless structure removes cords/bead chains, addressing modern child-safety expectations for residential spaces.
Cost Efficiency
A pure mechanical design means no battery, no wiring, no controller, cutting total system cost—effective for standardized SKUs.
Simplified Assembly
Modular design drops into common headrails; installers can complete integration quickly to reduce labor.
Longevity & Reliability
Torque endurance and material aging are checked under ISO routines. The 301 stainless spring resists fatigue for consistent balance over years of use.
Product Testing & Quality Control
Lifecycle Testing
Typical validation exceeds 10,000 lift/lower cycles with ±5% torque stability across travel.
Material Verification
- POM housings tested for dimensional stability and impact strength.
- 301 stainless-steel spiral spring validated for elasticity retention and corrosion resistance.
International Certification
- ISO 9001:2015 (quality) production routines
- ISO 14001:2015 (environment) practice alignment
Why Choose DOSRON for Zebra Blinds
 |
 |
Core Advantages of the Cordless Design
1. Cordless & Child-Safe Operation
Eliminates hanging cords and bead chains, dramatically reducing entanglement risk in home and office scenarios.
2. Smooth & Silent Performance
An optimized torque-control spring ensures quiet, linear motion and clean stripe alignment.
3. Long Lifecycle & Stable Torque
Spiral spring architecture maintains torque within typical ±5% drift across validated cycles.
4. Precision Materials
- POM housing for dimensional stability and wear resistance.
- 301 stainless-steel spring for fatigue and corrosion resistance.
5. Customization Flexibility
Torque, spring thickness, and interface options can be tuned to fabric weight and width targets—fully aligned with R38 Customized Manual Spring Systems specifications.
Field Insight
- R38 Customized Cordless Spring Systems deliver cordless safety and premium stripe consistency.
- POM + 301 stainless ensures long-term stability and low noise.
- Consistent torque keeps stripes parallel and visuals premium.
- 10,000+ cycles typical endurance with reliable hovering.
- OEM/ODM customization and ISO-based QC.
- Energy-free mechanics with minimal maintenance.
FAQ — Everything About the Zebra Spring Mechanism
Q1: Will this 38 mm mechanism fit my zebra headrail?
Yes. The compact 38 mm module supports common headrail/tube formats and can be adapted for special profiles.
Q2: What is the expected service life?
Typical validation exceeds 10,000 cycles with stable torque and consistent hovering.
Q3: Can it be used in offices/hotels?
Absolutely. Low-noise operation and stable stripe alignment make it suitable for meeting rooms, hotels, and showrooms.
Q4: What makes it different from generic springs?
Calibrated spiral spring geometry, POM precision guides, and ISO-controlled QC deliver repeatable balance and low noise.
Q5: How does it support child safety?
The cordless design removes hanging cords/chains to minimize entanglement risks in residential settings.
