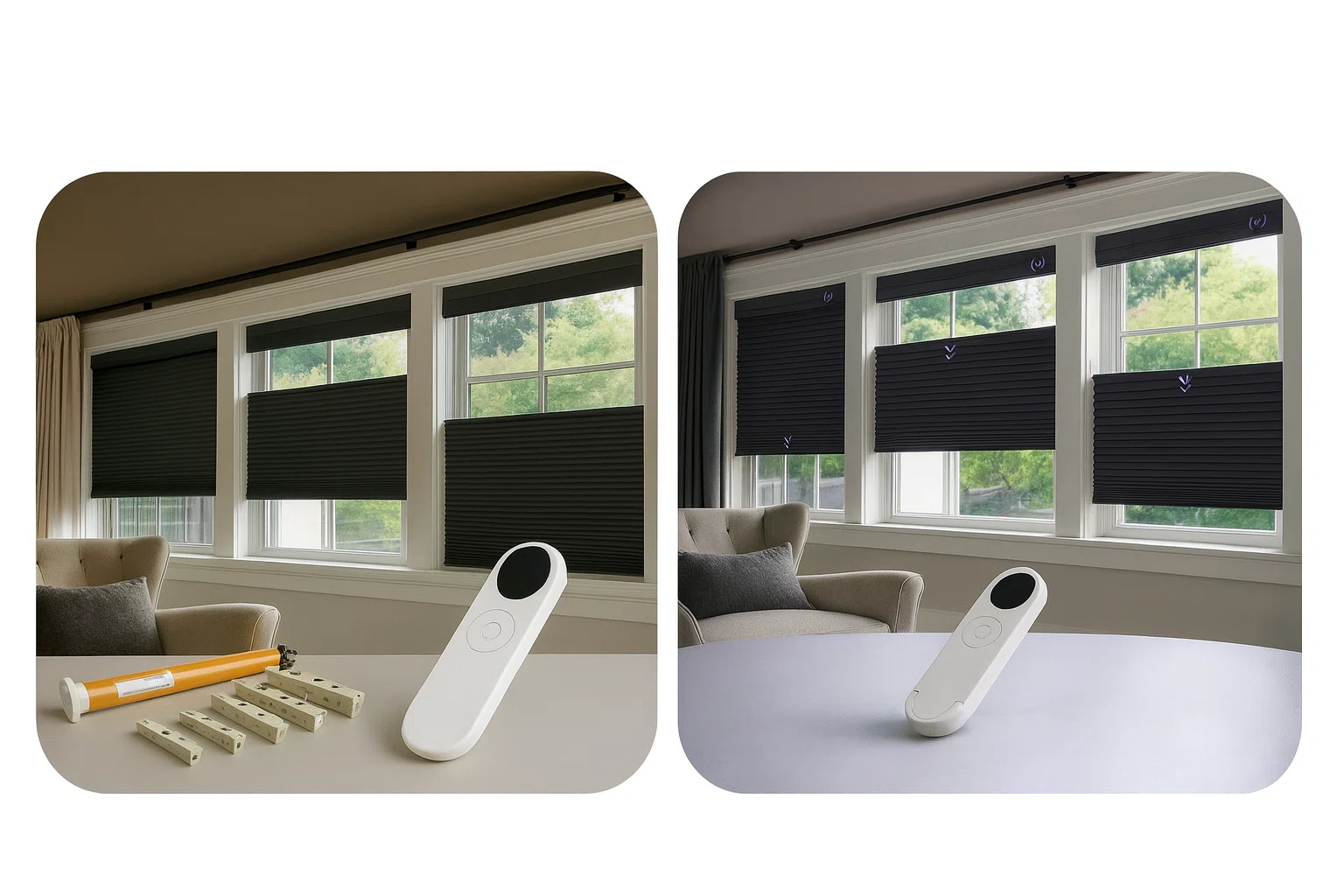

Hybrid Manual & Motorized Top Down Bottom Up Drive Unit
Quick Summary
The Hybrid Manual & Motorized Top Down Bottom Up Drive Unit combines a spring-assisted manual core with a low-voltage motor to control both
top-down and bottom-up movement in one cordless system. Users can push-pull the rails by hand or trigger motorized scenes via remote and gateways,
while the internal spring balance keeps motion light, quiet, and stable. It is engineered for child-safe cordless shades, power-fail operation, and smart-home upgrades
in modern honeycomb and fabric shade programs.
Product Overview
 |
The Hybrid Manual & Motorized Top Down Bottom Up Drive Unit is a compact in-headrail drive solution that merges a spring-balanced manual lift with a quiet DC motor. In daily use, homeowners can move the shade by hand from the bottom rail or top rail; for scheduled routines and remote control, the motor takes over.
The spring assist keeps the fabric weight balanced, so manual force remains light and motor torque can stay low, even on wider openings.
Designed for OEMs, this hybrid drive unit supports top down bottom up honeycomb and fabric shades, fits into mainstream aluminum headrails,and provides a clear upgrade path from purely manual cordless systems to smart, app-ready shading—without losing power-off operability.
Technical Specifications
| Item | Property Name | Parameter | Description |
| 1 | Drive Mode | Hybrid manual & motorized | Push-pull by hand or motor-driven via DC motor |
| 2 | Application | Top Down Bottom Up | Controls both upper and lower rails in one unit |
| 3 | Rated Motor Voltage | 12 – 24 V DC | Compatible with low-voltage blind automation systems |
| 4 | Spring Assist Torque | 0.6 – 1.8 N·m | Balances fabric and rail weight to reduce motor load |
| 5 | Noise Level | ≤ 40 dB @ 1 m | Quiet drive for bedrooms and living areas |
| 6 | Recommended Panel Width | 600 – 2,400 mm | Typical residential and light-commercial window spans |
| 7 | Shade Types | Honeycomb / fabric shades | Top down bottom up cordless constructions |
| 8 | Control Options | Wall switch / remote / gateway | Supports basic and smart-home controls |
| 9 | Cycle Life | ≥ 10,000 cycles | Combined manual & motor cycling in lab conditions |
| 10 | Safety Architecture | Cordless, low-voltage | Supports child-safety and energy-efficiency goals |
*Parameters can be tuned for specific fabric mass, rail geometry, and regional standards in your Hybrid Manual & Motorized Top Down Bottom Up Drive Unit program.
Key Advantages & Features
Hybrid Manual & Motorized Operation
The Hybrid Manual & Motorized Top Down Bottom Up Drive Unit keeps both control paths available: a light manual push-pull for everyday use and
quiet motor actuation for schedules, remote commands, and scenes. In case of power loss, the spring-balanced manual path continues to work without interruption.
Cordless Top Down Bottom Up Architecture
Both top-down and bottom-up movements are driven inside the headrail, eliminating external lift cords and reducing entanglement risks.
This cordless design supports child-safety requirements while offering clean, minimal façades for contemporary interiors.
Spring Assist Reduces Motor Load
A precision-engineered spring module offsets much of the shade weight, lowering the torque requirement for the motor. This improves energy efficiency,extends motor life, and keeps noise levels low even on wider shades.
Compact In-Headrail Package
The drive unit is packaged for common aluminum and steel headrails used in honeycomb and fabric programs. OEMs can migrate from manual cordless to hybrid systems without redesigning the entire headrail family.
Ready for Smart-Home Integration
With a low-voltage motor and defined interface options, the Hybrid Manual & Motorized Top Down Bottom Up Drive Unit can connect to building control systems, RF remotes, or hubs. Schedules, scenes, and voice control can be offered as tiered upgrade options.
Engineering Highlights

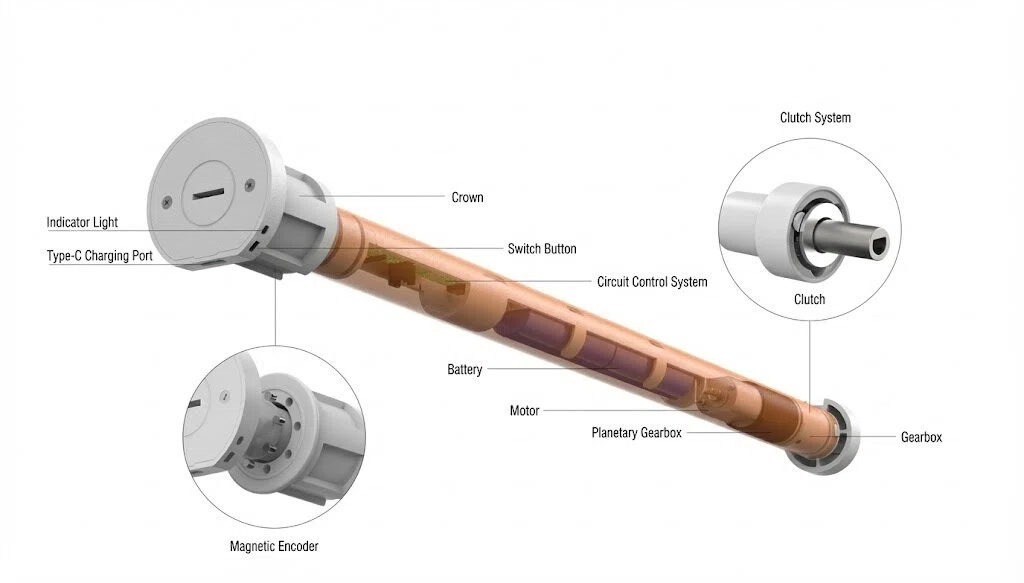

Drive Core & Gear Train
The motor, gear train, and spring core are co-engineered so that the torque curve of the spring and the output of the motor align across the full shade travel.Polymer gears and POM housings help keep backlash low and noise under control.
Top / Bottom Rail Coordination
Internal linkages and cords—or tapes in some constructions—coordinate the motion of the upper and lower rails. This ensures that the hybrid drive unit can support precise top down bottom up positioning with minimized skew and racking.
Pre-Tension & Balance Windows
Each Hybrid Manual & Motorized Top Down Bottom Up Drive Unit configuration ships with a defined pre-tension window. Installers can add or remove turns,verify hover at mid-drop, and then lock the setting to guarantee stable balance for the given fabric and width.
Durability & Safety Protections
- Combined Cycle Testing: Manual and motor cycles validated together to simulate real home use profiles.
- Low-Voltage Safety: DC motor design supports safe integration in residential and light-commercial environments.
- Cordless Design: No exposed lift cords, helping OEMs align with child-safety regulations for window coverings.
- Material Selection: POM housings, engineered plastics, and spring steel chosen for fatigue resistance and dimensional stability.
Operation & Integration

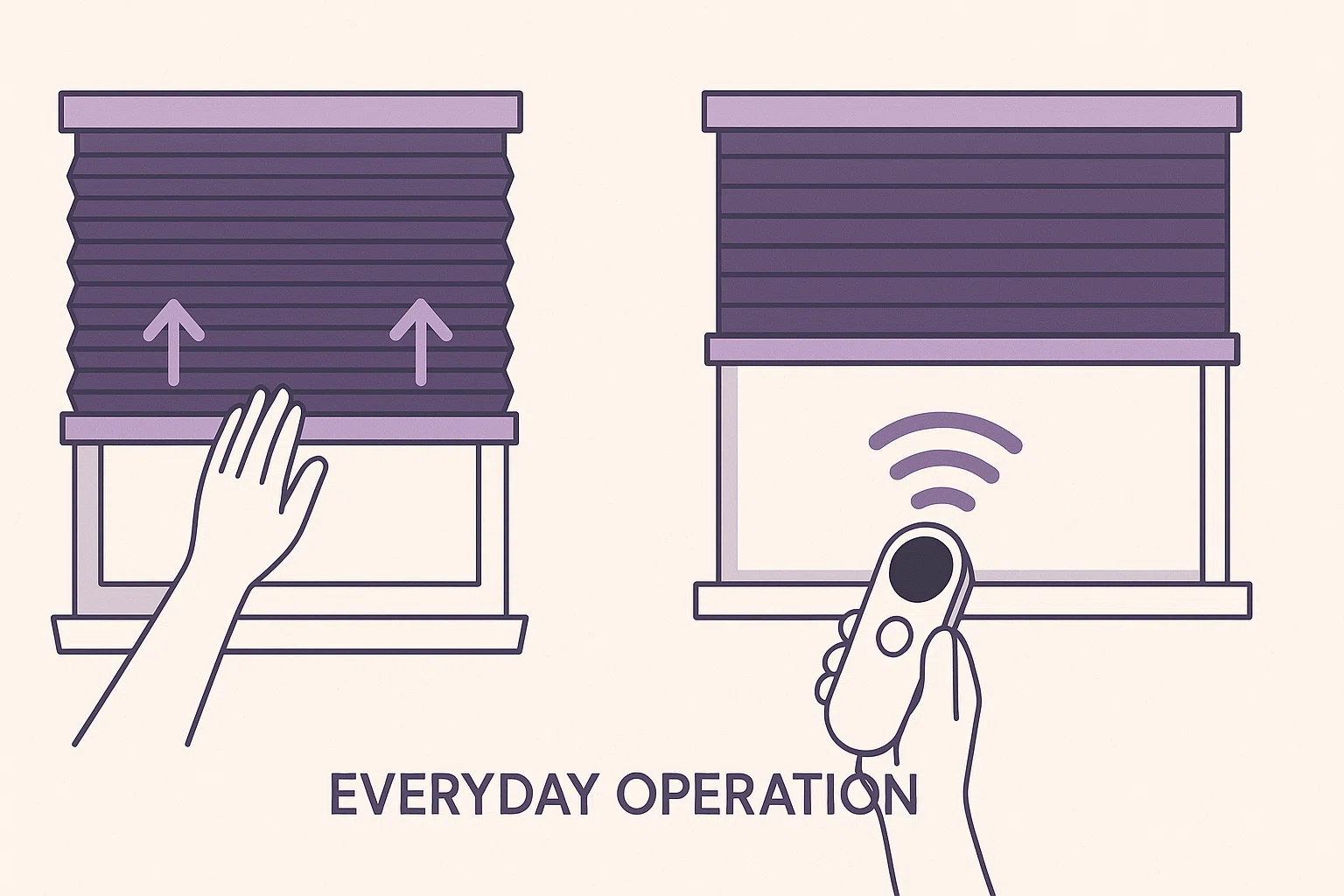

Everyday Operation
For quick adjustments, users simply move the top or bottom rail by hand; the spring-assisted core supports a light, smooth motion.
For routine scenes, early-morning light, or remote closing, the motor runs the same Hybrid Manual & Motorized Top Down Bottom Up Drive Unit along a controlled profile.
OEM Integration
The drive unit can be paired with standard DC power supplies, wall switches, RF remotes, or gateways. OEM partners receive wiring diagrams, recommended control options, and assembly checkpoints to streamline integration across product lines.
Applications
- Hybrid Top Down Bottom Up Honeycomb Shades
- Light-Filtering and Blackout Fabric Shades
- Smart Apartments, Townhouses, and Condominiums
- Bedrooms, Nurseries, and Kids’ Rooms
- Home Offices and Living Rooms with Daily Scene Control
- Boutique Hotels, Clinics, and Light-Commercial Interiors

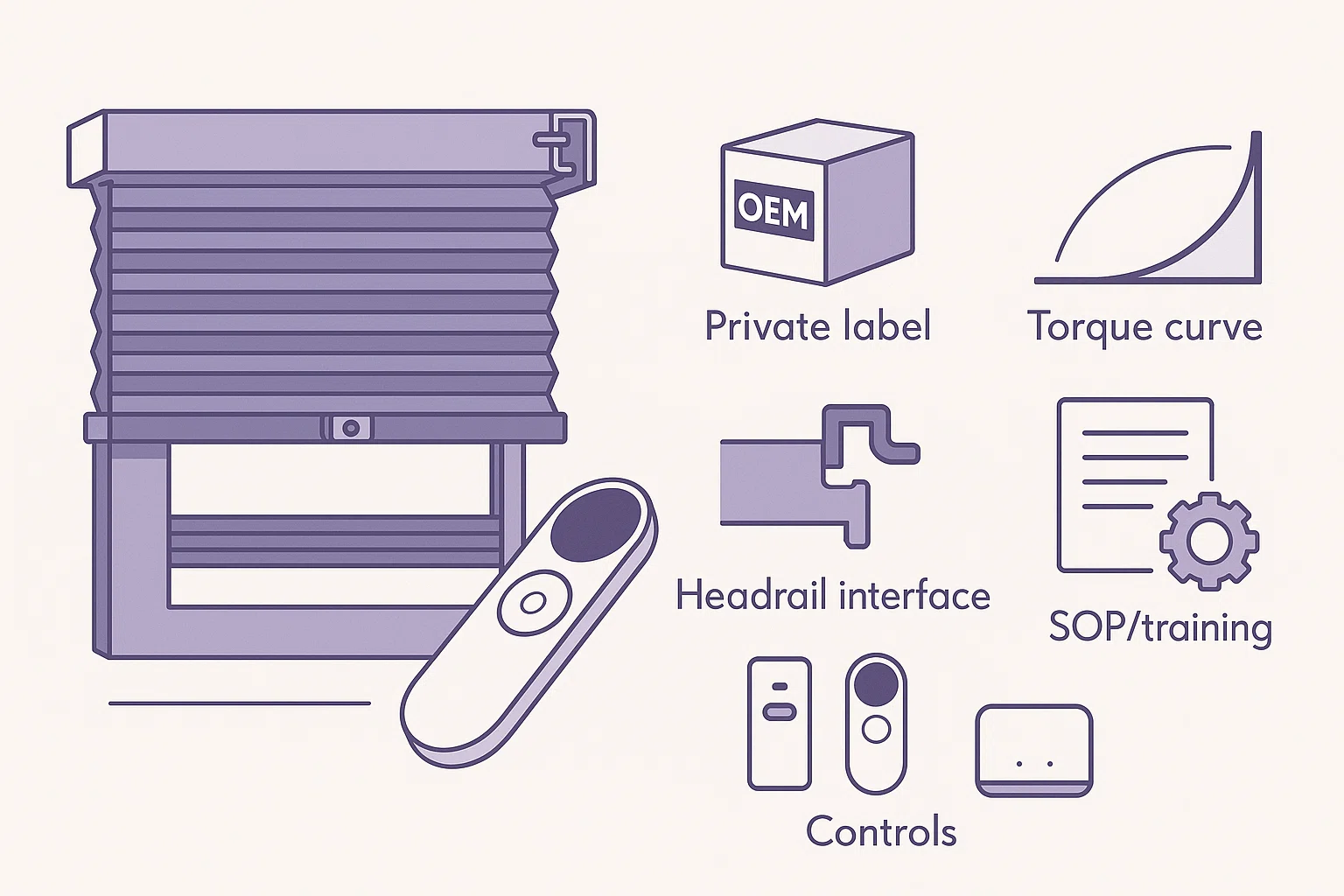

OEM & ODM Services
DOSRON supports global OEM and ODM programs centered on the
Hybrid Manual & Motorized Top Down Bottom Up Drive Unit, including:
- Private label branding on rails, headrails, and packaging
- Torque curve and spring specification tuning by shade size and fabric mass
- Interface adaptation to your existing headrail geometries and brackets
- Control portfolio planning (switches, remotes, hubs) per target market
- Engineering documentation, assembly SOPs, and remote training
Field Insight: Why OEMs Move to a Hybrid Manual & Motorized Top Down Bottom Up Drive Unit
The Hybrid Manual & Motorized Top Down Bottom Up Drive Unit gives brands a smooth path from classic cordless shades to smart, app-ready products.
By keeping the spring-assisted manual core and adding a low-voltage motor on top, it preserves power-off usability while enabling scenes and automation
that end users now expect.
With defined pre-tension windows, cycle-life testing, and integration guidelines, DOSRON helps you standardize performance
across fabrics, widths, and markets—without rebuilding your entire headrail system.
• Hybrid manual & motorized architecture in one compact headrail package.
• Cordless top down bottom up operation aligned with child-safety trends.
• Spring assist that reduces motor load and keeps operation quiet.
• OEM/ODM support for tailoring drive profiles to your shade portfolio.
Designed and manufactured in China with a focus on spring-based and motorized shading systems, each DOSRON unit reflects a simple idea:
“Reliable motion should feel natural by hand — and effortless when automated.”
FAQ
Q1: What is the MOQ for the Hybrid Manual & Motorized Top Down Bottom Up Drive Unit?
Standard minimum order quantity is typically 100–200 sets per configuration, with sample sets available for engineering validation.
Q2: What happens during a power failure?
The shade can still be operated manually by push-pull via the spring-assisted core. The Hybrid Manual & Motorized Top Down Bottom Up Drive Unit is designed so that power loss does not block basic operation.
Q3: Which shade constructions are recommended?
The drive unit is optimized for top down bottom up honeycomb shades and fabric shades within the recommended weight and width ranges.Other constructions can be reviewed with DOSRON engineering support.
Q4: Can it connect to smart-home systems?
Yes. The low-voltage motor can connect to dedicated gateways or controllers, enabling app control, schedules, and integration with third-party smart-home platforms depending on the chosen protocol.
Q5: What data do you need to recommend a configuration?
Please provide shade width × drop, fabric mass (g/m²), headrail profile, and target control mode. DOSRON will suggest the appropriate Hybrid Manual & Motorized Top Down Bottom Up Drive Unit version and control options for your project.
