Hybrid Cordless Spring and Motor Kit for Venetian Blinds
Quick Summary
The DOSRON Hybrid cordless spring and motor kit for Venetian blinds combines a constant-force spring lift core with a low-voltage motor drive in one headrail-ready platform.
It lets OEM brands offer fully cordless faux-wood & aluminum Venetians that can be moved manually or by motor, stay balanced if the power is off, and meet modern
child-safety and quiet-operation expectations in North America and Europe.
 |
|
1. What Is the DOSRON Hybrid Cordless Spring and Motor Kit for Venetian Blinds?
The DOSRON Hybrid cordless spring and motor kit for Venetian blinds is a modular drive system that hides both a spring-balanced lift unit and a compact
motor module inside the headrail. Users can lift or lower the blind by hand for everyday “grab-and-go” control, or trigger the motor via remote, wall switch, or smart-home hub.
If power is low or offline, the constant-force spring still supports the slat stack, so the blind remains comfortable to use instead of becoming “dead weight”.
For OEM and private-label brands, this platform turns a single headrail architecture into multiple SKUs: manual cordless, hybrid spring + motor, and
even motor-only programs — without re-engineering the entire product line.

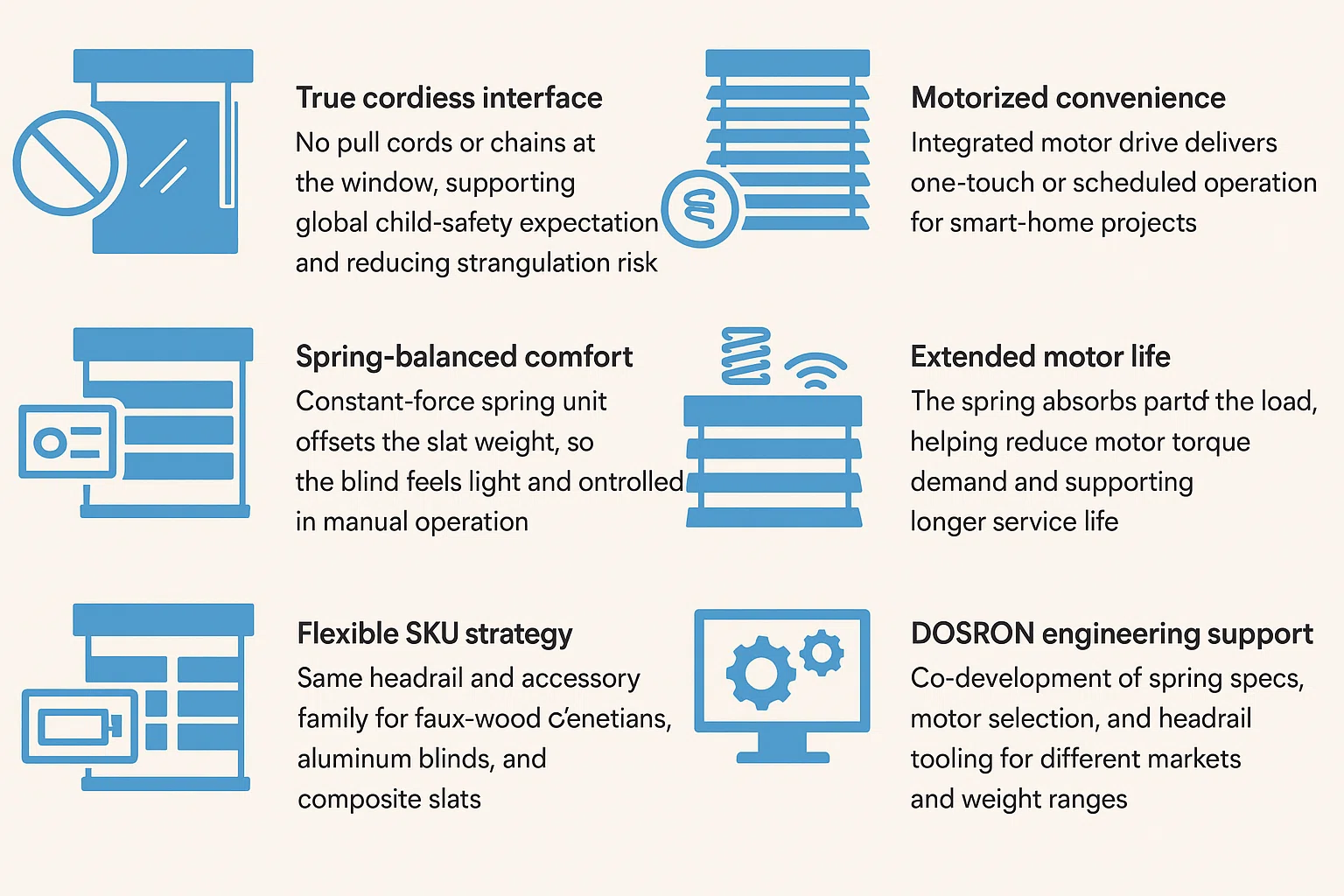

2. Why Venetian Blind Brands Choose DOSRON’s Hybrid Platform
- True cordless interface: No pull cords or chains at the window, supporting global child-safety expectations and reducing strangulation risk.
- Spring-balanced comfort: Constant-force spring unit offsets the slat weight, so the blind feels light and controlled in manual operation.
- Motorized convenience: Integrated motor drive delivers one-touch or scheduled operation for smart-home projects.
- Fail-safe usability: If the battery is low or power supply is disconnected, users can still operate the blind by hand.
- Extended motor life: The spring absorbs part of the load, helping reduce motor torque demand and supporting longer service life.
- Flexible SKU strategy: Same headrail and accessory family for faux-wood Venetians, aluminum blinds, and composite slats.
- DOSRON engineering support: Co-development of spring specs, motor selection, and headrail tooling for different markets and weight ranges.
3. Inside the System: How Spring and Motor Work Together
3.1 Spring Unit – The Passive “Muscle”
The cordless spring unit is a sealed module using a constant-force stainless-steel spring and POM housing. It provides nearly flat lifting force over the full stroke,
helping the blind stay in place at any height while minimizing bounce and impact noise.
- Material: 301 stainless-steel spring strip & low-friction POM casing.
- Function: Offsets 50–80% of slat stack weight (tuned by spring spec and pre-tension).
- Comfort: Smooth lift with reduced “jerk” when users start or stop movement.
- Noise control: Internal guides and damping design support quiet operation in bedrooms and offices.
3.2 Motor Module – The Active “Brain”
The motor module is based on DOSRON’s DT25 low-voltage tubular motor platform with integrated lithium battery and multi-channel remote pairing. Typical models operate at
5 V DC, with rated power around 5 W, speed in the 25–28 rpm range and torque in the 0.4–0.7 Nm class, depending on configuration.:contentReference[oaicite:0]{index=0}
- Battery capacity options: Approx. 2600 mAh or 5200 mAh integrated Li-ion pack.
- Control modes: Hand-held remote, wall-mounted transmitter, or third-party gateway integration.
- Travel learning: Electronic upper/lower limit and “favorite” position setting via remote.
- Protection: Low-battery indication, stall detection, and internal electronics protection.
 |
|
3.3 Hybrid Logic – Who Does What?
In a Hybrid cordless spring and motor kit for Venetian blinds, the spring handles the base lifting effort while the motor provides direction and fine speed control:
- Manual mode: User lifts the bottom rail; spring supports the weight; motor is idle.
- Motor mode: Motor drives the drum with spring assistance, reducing peak torque demand.
- Power-off mode: System reverts to “smart manual” cordless operation instead of locking the blind.
4. Typical Applications for DOSRON Hybrid Venetian Systems
DOSRON designed this hybrid kit for OEMs serving mid-to-high-end residential and light commercial projects where both aesthetics and function matter:
- Faux-wood Venetian blinds in family living rooms, bedrooms, and nurseries.
- Aluminum Venetians for home offices, study rooms, and small commercial spaces.
- Hospitality & serviced apartments needing cordless safety with motorized comfort.
- Smart-home upgrade packages sold through dealers and installers.
- Retail private-label programs that want to migrate from cord-lock to cordless and motor-ready SKUs.
5. Core Technical Specifications (Indicative Range)
Final specifications of the DOSRON Hybrid cordless spring and motor kit for Venetian blinds are tuned per project. The table below shows a typical design window used by many OEM partners:
| Parameter | Typical Value / Range | Notes |
|---|---|---|
| Recommended blind width | 600–2400 mm | Project-specific; wider sizes on request. |
| Recommended blind height | 600–2400 mm | Depends on slat type and weight. |
| Supported blind weight | 2–8 kg (tuned) | Spring spec & motor selection matched to weight. |
| Motor torque class | ≈0.4–0.7 Nm | DT25 battery motor family. |
| Rated motor speed | ≈25–28 rpm | Balanced between noise and travel time. |
| Battery capacity options | ≈2600 mAh / 5200 mAh | USB Type-C charging or optional solar/adapter. |
| Cycle life (spring module) | ≥10,000 cycles (design target) | Validated per project with OEM partners. |
| Target sound level | ≤40 dB @ 1 m (typ.) | Quiet running depends on installation quality. |
| Protection class | IP20 (indoor use) | For dry interior conditions only. |
*Values above are indicative. DOSRON will confirm detailed specifications and test results according to your headrail design, slat material, and target market.
6. System Components in the DOSRON Hybrid Kit
A typical DOSRON Hybrid cordless spring and motor kit for Venetian blinds includes:
- Cordless spring unit: Sealed constant-force spring module with pre-tension options.
- Battery motor module: DT25-based low-voltage motor with integrated control and limit-setting.
- Drive drum & adapters: Interfaces between motor/spring and your ladder tape & lift tape system.
- Headrail brackets & end-caps: Compatible with standard Venetian blind profiles (custom tooling optional).
- Remote control / wall transmitter: Multi-channel control with group and favorite positions.
- Cables / charging accessories: USB Type-C cable, optional power adapter or solar panel.
DOSRON can also supply tilt mechanisms, wands, and Venetian blind accessories for a complete bill of materials.
7. Child Safety, Standards, and Market Positioning
Because the interface is 100% cordless, DOSRON’s hybrid kit supports retailers and brands working to align with North American and European child-safety requirements for window coverings.
Your marketing teams can confidently position hybrid Venetian blinds as:
- “No visible cords” solutions for families with children and pets.
- Future-ready for evolving regulations that restrict exposed pull cords and chains.
- Premium comfort products that are quiet, smooth, and easy to use every day.
8. OEM / ODM Options with DOSRON
As a component specialist, DOSRON works directly with fabricators, headrail extruders, and brand owners. Typical cooperation steps:
- Review your target blind sizes, slat materials, and market (US, EU, or others).
- Select an appropriate spring spec and motor torque / battery option.
- Match the headrail profile and design adapters or brackets if needed.
- Run sample builds and cycle tests before mass production.
- Provide assembly guides and marketing support for your launch.
If you are upgrading from classic cord-lock Venetian blinds, DOSRON can help you map the old SKUs to new cordless spring-only and Hybrid cordless spring and motor kit SKUs, reducing confusion for dealers.
9. FAQ: Hybrid Cordless Spring & Motor Kit for Venetian Blinds
Q1: Is the hybrid system safe for children’s rooms?
Yes. There are no exposed lift cords or chains at the window. The blind is operated by hand on the bottom rail or via remote control, aligning with child-safety expectations in key markets.
Q2: What happens if the battery is empty?
The blind remains manually operable because the constant-force spring still supports the slat weight. Users can continue to move the blind until the motor is recharged.
Q3: Can I offer both manual cordless and hybrid in the same program?
Yes. Many OEM partners use the same DOSRON headrail platform and simply add or remove the motor module to create different price levels: cordless spring-only, hybrid spring + motor, or motor-only.
Q4: Which slat types are compatible?
The kit is suitable for faux-wood, composite, and aluminum slats. DOSRON will help tune spring and motor specs according to slat weight and ladder tape layout.
Q5: How many blinds can one remote control?
DOSRON multi-channel remotes typically support up to 15 channels plus an “all” channel, giving dealers flexible grouping for rooms and open-plan spaces.
10. Start Your Hybrid Venetian Project with DOSRON
If you are planning to upgrade corded Venetian blinds to a cordless, child-safe, and hybrid motor-ready line, the
DOSRON Hybrid cordless spring and motor kit for Venetian blinds gives you a practical platform to move quickly — without re-inventing your entire headrail system.
Contact DOSRON’s engineering and sales team to discuss:
- Target blind sizes and weight ranges.
- Spring and motor configuration for your market.
- Sample kits and pilot projects.
- Branding and packaging options for private-label programs.
DOSRON helps you turn quiet, cordless technology into a clear market advantage — one Venetian blind at a time.
