Compatible Motorized Louver Accessories and Spring Systems
Quick Summary
Compatible motorized louver accessories and spring systems are modular drive components
designed for plantation shutters, venetian blinds, and architectural louvers.
The range includes tilt-drive gearboxes, link rods, end brackets, and spiral / constant-force spring systems
that stabilize movement and balance panel weight. OEM brands can combine motors, louver accessories and spring
modules to build cordless, motor-ready louver systems with smooth tilt, stable positioning, and
child-safe operation.
Product Overview
The compatible motorized louver accessories and spring systems family is built as a
component toolkit for window covering and façade manufacturers. Tilt motors (low-voltage or battery),
compact gearboxes, headrail brackets and linkage arms connect directly to louver shafts or tilt bars.
Integrated spring systems – using spiral or constant-force springs – counterbalance panel
weight, reduce backlash and prevent “snap” at end positions.
By standardizing interfaces (square / D-shaped shafts, plug-in couplers, adapter bushings), the same
drive platform can be adapted across PVC plantation shutters, faux-wood venetians, aluminum louvers,
and hybrid spring-motor solutions in a single headrail architecture.
 |
 |
Key Features of Compatible Motorized Louver Accessories and Spring Systems
- Cross-system compatibility: Shared interfaces for motorized louver accessories and spring systems across shutters, venetians and small architectural louvers.
- Cordless, tilt-only designs: Drive and balance are inside the headrail or frame, removing loose pull cords and supporting child-safe specifications.
- Spring-assisted stability: Spiral / constant-force springs counterbalance louver or panel weight to hold position and avoid drift.
- Quiet, controlled motion: Gear ratios and spring curves are tuned for smooth tilt, reduced backlash and low noise in bedrooms and offices.
- OEM-ready modules: Motors, spring cartridges, tilt gearboxes and accessories are supplied as plug-in modules for different tube diameters and louver shafts.
- Retrofit and new-build: Options for new cordless systems or upgrading legacy corded tilt mechanisms to motorized louver accessories and spring systems.
Technical Specifications
| System Category | Compatible motorized louver accessories and spring systems for shutters, venetians and louvers |
| Motor Platforms | Battery / low-voltage tilt motors, micro gearmotors with integrated limit control |
| Typical Torque Range | 0.4 – 1.2 Nm (configurable by louver size and panel weight) |
| Spring Types | Spiral springs, constant-force springs, torsion springs for tilt balance |
| Spring Materials | 301 / 304 stainless spring steel, heat-treated carbon steel (on request) |
| Housing Materials | POM / PA6 / PA66 engineering plastics with optional UV stabilizer; zinc-alloy gear shells where required |
| Cycle Life (Target) | ≥ 10,000 – 50,000 tilt cycles under rated load (design target, project-dependent) |
| Noise Level | Typically ≤ 40 dB at 1 m in standard indoor environments (with damping) |
| Supported Louver Types | PVC / composite plantation louvers, faux-wood venetian slats, light exterior aluminum louvers |
| Interface Options | Square shafts, D-shaped shafts, plug-in adapters, clip-on couplers for existing tilt rods |
| Protection Class | IP20 for indoor use (higher ratings available for specific louver projects) |
Attribute Snapshot
Torque: 0.4–1.2 Nm (typical tilt range)
Spring Life: ≥ 10,000–30,000 cycles
Noise: ≤ 40 dB at 1 m (with damping)
Materials: POM / PA housings, stainless spring steel, engineered gear sets
Applications: Plantation shutters, venetian blinds, small architectural louvers
Design Goal: Cordless, stable, motor-ready louver systems

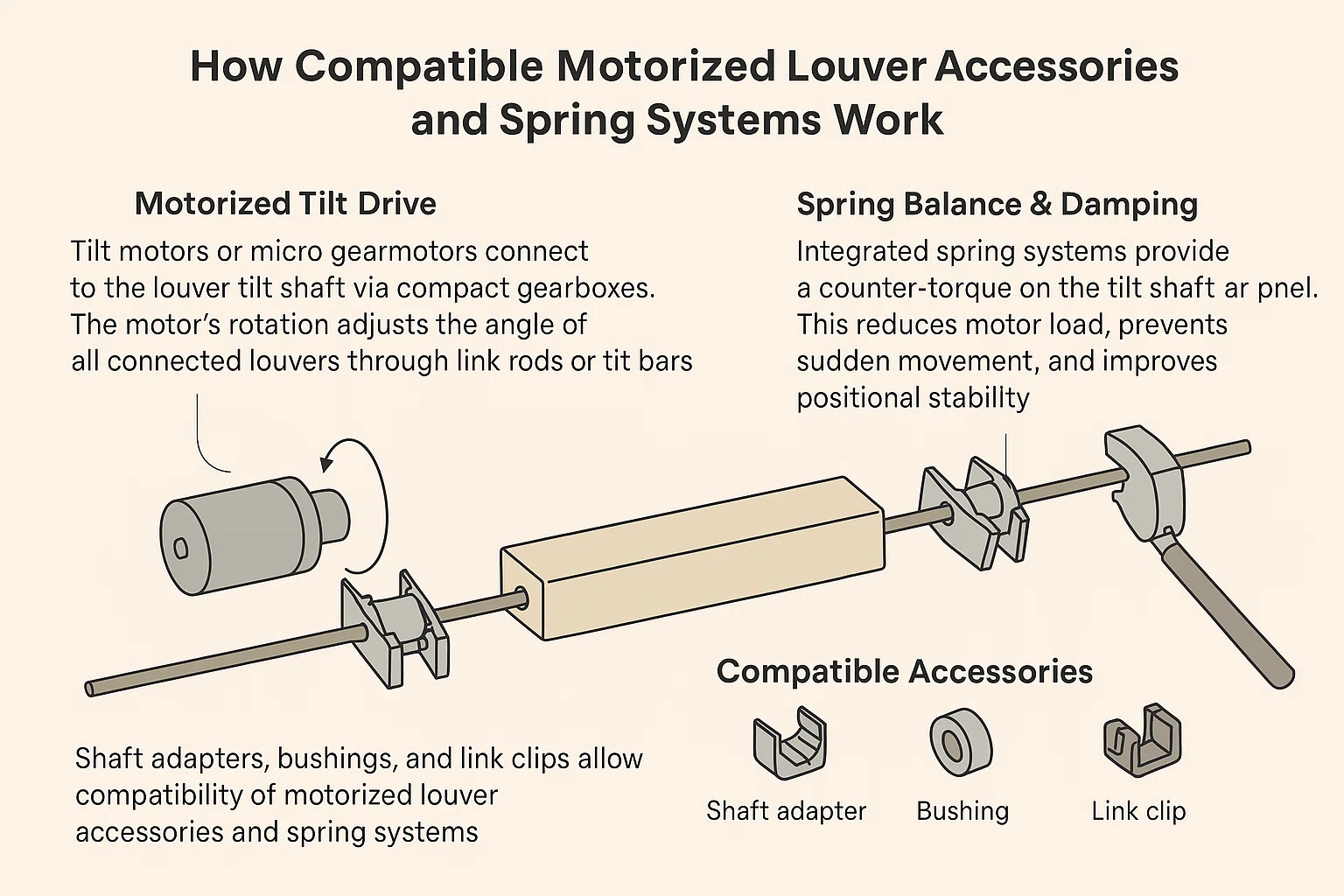

How Compatible Motorized Louver Accessories and Spring Systems Work

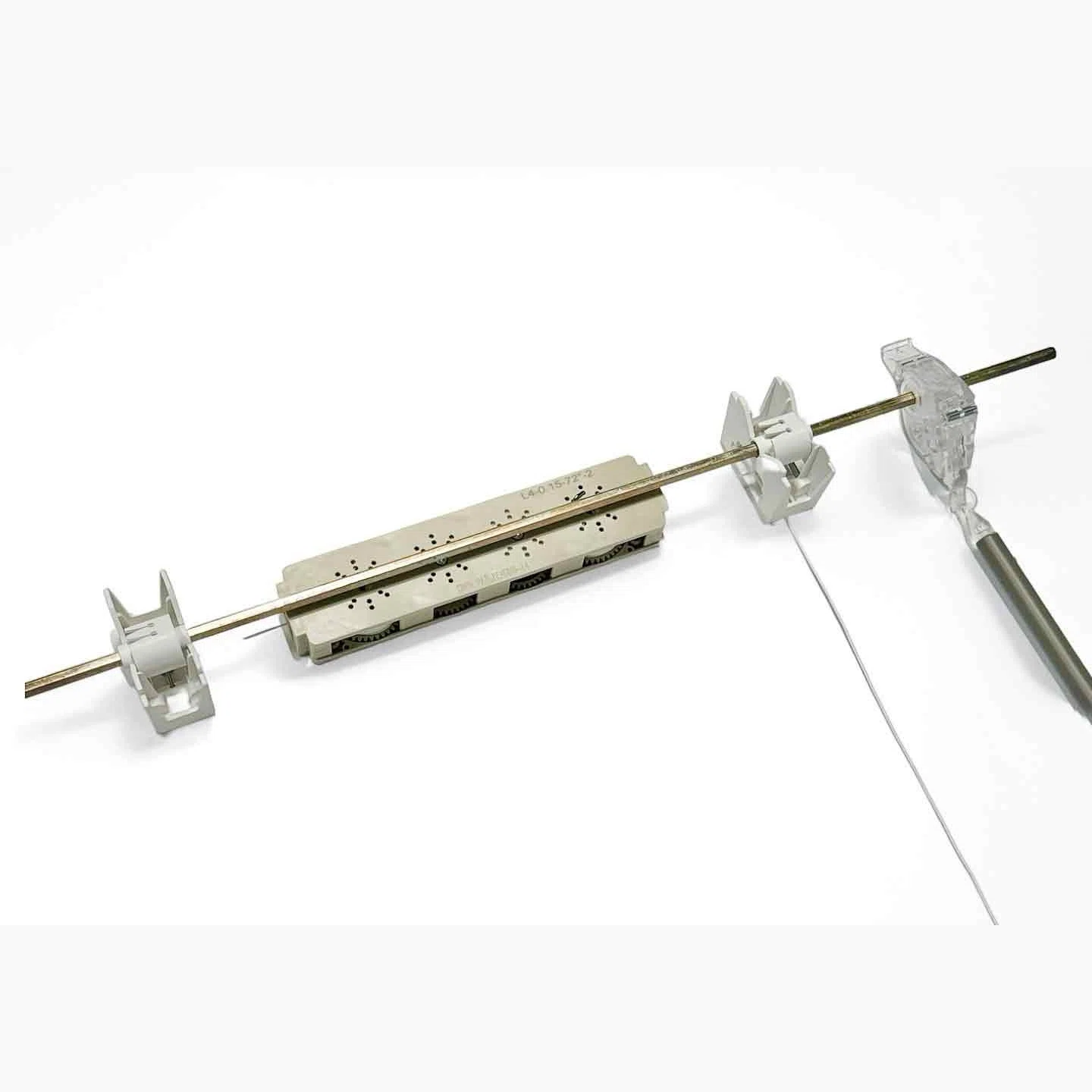

Motorized Tilt Drive
Tilt motors or micro gearmotors connect to the louver tilt shaft via compact gearboxes. The motor’s
rotation adjusts the angle of all connected louvers through link rods or tilt bars. Limit positions
(fully open / fully closed) are set inside the motor or externally via a controller.

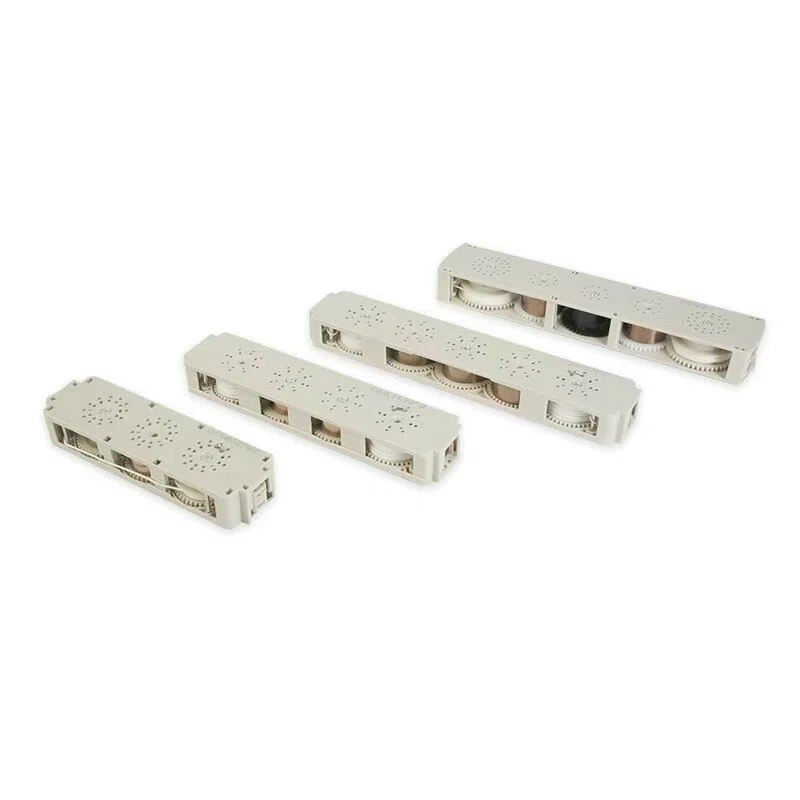

Spring Balance & Damping
Integrated spring systems provide a counter-torque on the tilt shaft or panel. This reduces
motor load, helps prevent sudden movement when loads change (e.g. accidental touch) and improves positional
stability. Carefully selected spring curves and friction guides keep the movement controlled rather than jerky.
Compatible Accessories
The accessory family includes shaft adapters, bushings, link clips, end brackets, motor brackets, and
alignment guides. These allow motorized louver accessories and spring systems to be dropped
into different headrail profiles and shutter frames with minimal re-engineering.

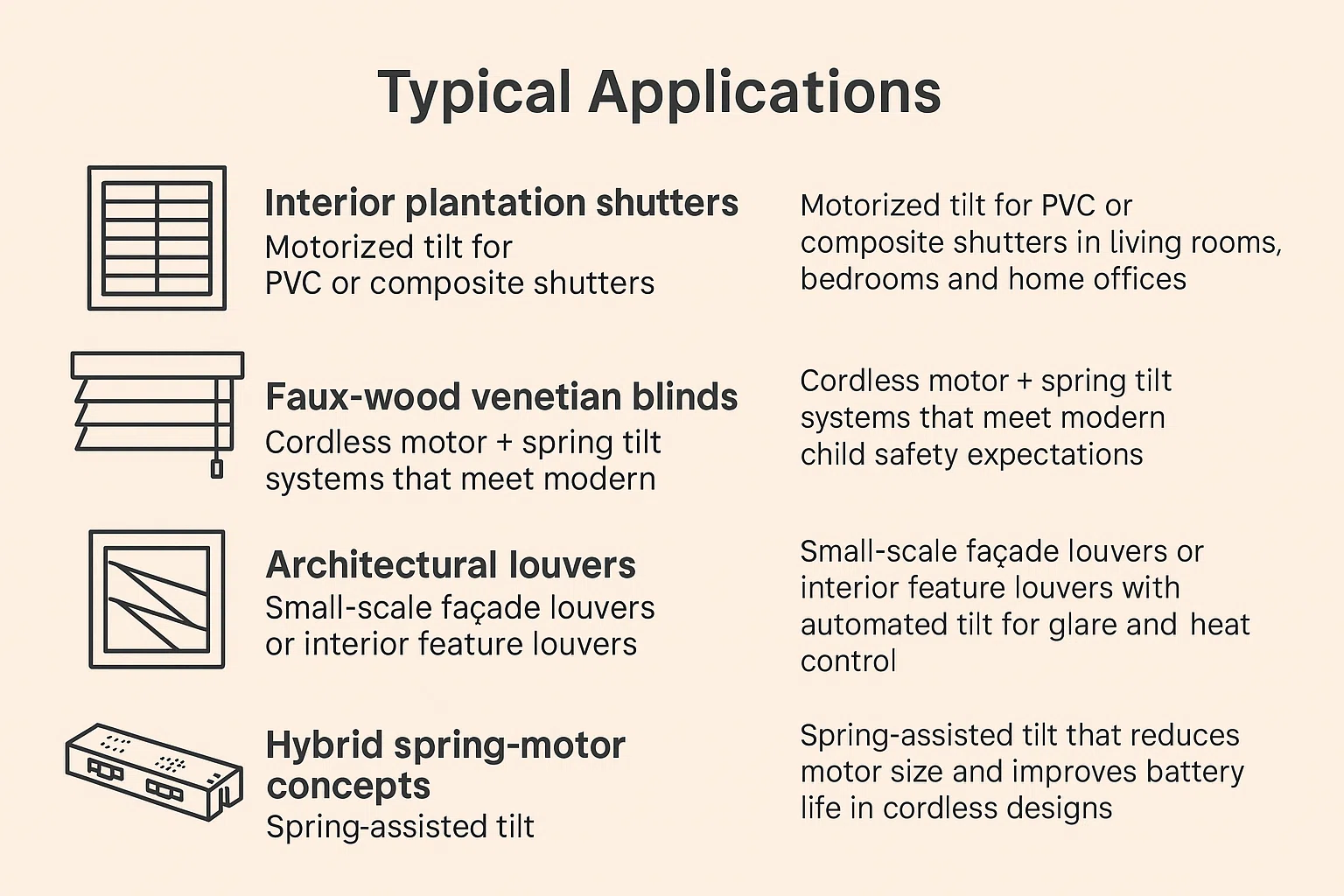

Typical Applications
- Interior plantation shutters: Motorized tilt for PVC or composite shutters in living rooms, bedrooms and home offices.
- Faux-wood venetian blinds: Cordless motor + spring tilt systems that meet modern child safety expectations.
- Architectural louvers: Small-scale façade louvers or interior feature louvers with automated tilt for glare and heat control.
- Hybrid spring-motor concepts: Spring-assisted tilt that reduces motor size and improves battery life in cordless designs.
- Legacy upgrades: Replacing corded tilt mechanisms with compatible motorized louver accessories and spring systems inside existing frames.
Installation & Integration Notes
- Define louver geometry: Louver width, thickness, pitch, and panel height range.
- Estimate loads: Calculate torque required to tilt the louver stack under worst-case conditions.
- Select motor module: Choose torque band, speed, and power supply (battery / low-voltage) according to project requirements.
- Choose spring system: Match spiral / constant-force spring specifications to the measured torque and desired “feel”.
- Configure accessories: Pick shaft adapters, brackets and link rods compatible with your headrail or shutter frame.
- Test & validate: Run tilt cycles, noise checks and hold-at-position tests before releasing to mass production.
OEM / ODM Customization Options
- Torque & spring curve tuning: Customized torque bands and spring curves for your louver geometry and weight range.
- Headrail & frame interfaces: Tailored brackets and adapters to fit your existing profiles and tilt rods.
- Control electronics: Options for dry-contact, RF, Zigbee, or other smart-home ready interfaces on motorized platforms.
- Material choices: UV-stabilized plastics, corrosion-resistant coatings, and low-noise gear train options.
- Branding & packaging: Neutral or branded kits with labels, QR codes and installation guides for local partners.
FAQ — Compatible Motorized Louver Accessories and Spring Systems
What information do I need to select a spring system for my louvers?
Please provide louver width, thickness, panel height, material type and approximate panel weight.
With these parameters, we can propose suitable spring systems and compatible motor or manual
tilt accessories.
Can I use the same motorized louver accessories on shutters and venetians?
In many cases yes. The core gearboxes and motorized louver accessories are shared, while
only the shaft adapters and brackets change. This allows you to support multiple product lines with one
drive platform.
Do I have to use a motor, or can the spring system work with manual tilt?
The compatible motorized louver accessories and spring systems platform supports both.
Springs can be used with manual tilt wands or handles today, and the same interfaces can accept a motor
module in future upgrade programs.
How do these systems help with child safety?
By putting the tilt drive and spring systems inside the headrail or frame, there are no
loose cords for children or pets to get tangled in. This supports compliance with modern child-safety
expectations in key markets.
Short Product Description
Compatible motorized louver accessories and spring systems are a modular toolkit of motors,
gearboxes, springs and brackets for plantation shutters, venetian blinds and small architectural louvers.
Spring-assisted tilt and standardized interfaces make it easier for OEMs to build cordless, motor-ready
louver systems with stable positioning, low noise and strong child-safety credentials.
