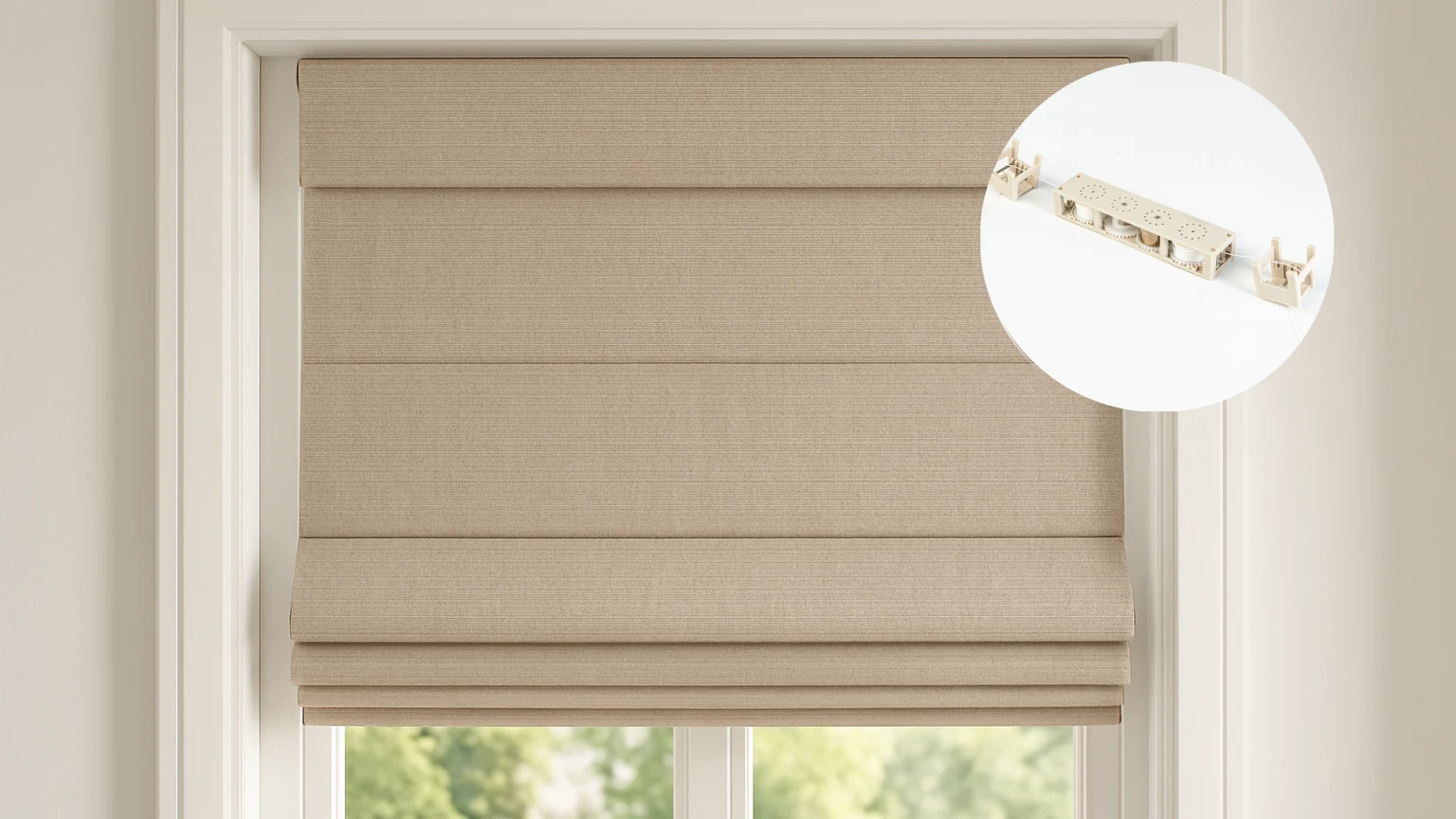

L11 Cordless Spring Mechanism for Fabric Roman Shade

What Is the L11 Cordless Spring Mechanism for Fabric Roman Shade?

The L11 Cordless Spring Mechanism is DOSRON’s dedicated platform for turning classic fabric Roman shades into modern cordless products. The core component is the L11 Spring Box, which replaces traditional cord locks and cleats with an internal constant-force spring and cord drum hidden inside the headrail. Together with the 1″ Cord Bases, it keeps lift cords inside the headrail and fabric instead of hanging in front of the window.

In a standard layout, one L11 Spring Box is fixed to the shade headrail. The lift cord is wound inside the box and exits from both sides. These two cord runs pass through a pair of 1″ Cord Bases installed in square cut-outs on the headrail, then drop down behind the fabric, through sewn pockets or rings and finally attach to the bottom rail. From the user’s point of view, there are no hanging cords or chains – only a clean fabric panel and a bottom rail that can be positioned smoothly at any height.

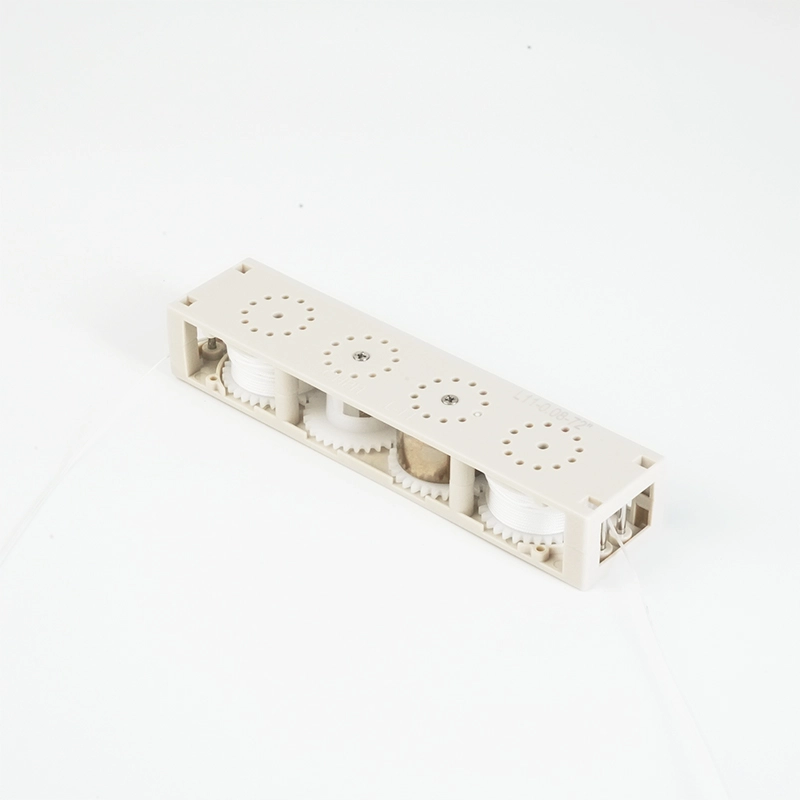

Inside the L11 Spring Box: Materials and Construction

The L11 Spring Box is engineered as a sealed, service-friendly module that can be integrated into OEM Roman shade headrails with minimal design changes.

• Housing: Low-friction POM (acetal) or equivalent engineering plastic, designed as a closed box to protect the constant-force spring and cord drum from dust and contamination.
• Constant-force spring: Stainless-steel strip (e.g. 301 grade) formed into a constant-force coil that delivers nearly flat torque over the full lifting stroke of the shade.
• Cord drum: Precisely sized drum guiding the lift cord turns so that winding and unwinding remain controlled, avoiding sudden jumps or slack.
• Dual cord exits: Two cord exits at both ends of the L11 Spring Box, creating a symmetric double-cord layout to keep the bottom rail level and stable.

By combining a constant-force spring with a sealed housing and guided cord path, the L11 Spring Box acts as a compact “engine” that provides a stable lifting force and a cleaner user interface than traditional corded Roman systems.

1″ Cord Base: Guiding the Cord and Locking Position in the Headrail

While the L11 Spring Box is the core product, the 1″ Cord Base is the key supporting part that stabilises the cord path and secures the mechanism to the headrail. Together they form the complete L11 Cordless Spring Mechanism.

• Headrail integration: Two square holes are punched or milled into the headrail on both sides of the L11 Spring Box. The Cord Bases snap or screw into these holes, locking their position relative to the box.
• Cord guidance: The cord exits the Spring Box, passes through the Cord Bases and then turns downward underneath the headrail.
• Load transfer: Each Cord Base helps distribute forces from the moving cord into the headrail, reducing side loads on the L11 Spring Box housing and improving long-term stability.
• Assembly efficiency: In production, installers mount the L11 Spring Box, insert the Cord Bases into the pre-made openings and thread the cord through. This repeatable process is suitable for high-volume OEM lines.

How the L11 Cordless Spring Mechanism Operates in a Roman Shade

The complete system is designed around a simple user action – moving the bottom rail – while all the work is done inside the headrail.

1. The L11 Spring Box is fixed near the centre of the headrail with screws or integrated clips.
2. The lift cord is wound around the internal drum and exits from both ends of the L11 Spring Box.
3. On each side, the cord passes through a 1″ Cord Base mounted in a square opening in the headrail and then exits underneath the headrail.
4. From there, the cord runs downward behind the fabric, passing through rings or sewn channels until it reaches the bottom of the shade.
5. At the bottom, the cord is secured using cord retainers or knots inside the bottom rail so that the entire fabric panel and bottom rail hang from the L11 Cordless Spring Mechanism.
6. When the user lifts the bottom rail, the constant-force spring in the L11 Spring Box winds in cord and raises the shade. When they pull the bottom rail down, the spring unwinds in a controlled way, allowing smooth, balanced descent.

At no point does the user need to handle exposed lift cords. The visible interface is a clean fabric Roman shade and a bottom rail that moves quietly and predictably.

Key Features and Benefits of the L11 Cordless Spring Mechanism

• Cordless user interface: No external pull cords or beaded chains at the front of the shade; the Cordless Spring Mechanism is fully hidden inside the headrail and fabric.
• Smoother lift feel: The constant-force spring in the L11 Spring Box helps neutralise fabric and bottom rail weight so the shade feels lighter and easier to position.
• Stable intermediate positions: Properly matched spring torque and cord routing through the Cord Bases allow the Roman shade to stay at the height where the user leaves it.
• Cleaner visual design: By removing front cords and cleats, attention returns to the fabric and sewing details instead of hardware.
• Child-safer architecture: Internal lift cords reduce accessible cord hazards at the user side and support modern expectations for child-safe window coverings.
• OEM-friendly platform: The L11 Spring Box and Cord Bases can be adapted to existing headrail programs with simple hole patterns and mounting interfaces.

Technical Specifications for the L11 Cordless Spring Mechanism

Typical Application Scenarios

The L11 Cordless Spring Mechanism is designed for daily-use residential and light-commercial environments where a cordless Roman shade offers a clear upgrade in both safety and appearance.

• Bedrooms and children’s rooms: Soft fabric Roman shades with a cordless interface that reduces cord hazards and keeps the view clean.
• Living rooms and lofts: Decorative Roman shades where the mechanism must support heavier fabrics without feeling stiff or noisy.
• Hotels and serviced apartments: Guest-facing windows where easy operation, reduced maintenance and a premium look are all important.
• Boutiques and showrooms: Display windows using Roman shades as part of the interior design language, with no visible cords to distract from the products.

OEM / ODM Integration for L11 Spring Box Programs

DOSRON works with Roman shade manufacturers and brand owners to adapt the L11 Cordless Spring Mechanism to their existing headrail and fabric standards.

• Headrail adaptation: Review of current headrail drawings and recommendation of hole patterns and mounting details for the L11 Spring Box and Cord Bases.
• Spring tuning: Selection of torque levels and pre-tension windows around your main fabric SKUs, widths and drops.
• Assembly guidance: Suggested sewing, threading and balancing procedures to keep line setup simple and repeatable.
• Documentation support: Drawings and basic performance data to support internal quality files and safety documentation.

About DOSRON Cordless Mechanisms

DOSRON specialises in spring-based cordless mechanisms and motor platforms for modern window coverings. The L11 Spring Box and Cord Base system for fabric Roman shades sits alongside DOSRON solutions for roller, zebra and Venetian blinds, allowing OEM partners to build complete cordless collections on a consistent engineering philosophy.

With a focus on practical installation, stable supply and repeatable quality, DOSRON acts as a long-term partner for brands upgrading from traditional corded systems to safer and more refined cordless products.

FAQ for the L11 Cordless Spring Mechanism

Q1: What is the main difference between the L11 system and a traditional corded Roman shade?

A1: Traditional systems rely on exposed cord locks and free-hanging cords at the front of the shade. The L11 Cordless Spring Mechanism uses an internal L11 Spring Box and 1″ Cord Bases inside the headrail so that users only touch the bottom rail, not the lift cords.

Q2: Can I use one L11 Spring Box on all Roman shade sizes?

A2: One L11 Spring Box covers a typical residential window range, but best results come from matching the spring torque and pre-tension to your main sizes. For very wide or heavy shades, DOSRON can recommend stronger springs or multi-module layouts.

Q3: Do I need to redesign my headrail to use the L11 Cordless Spring Mechanism?

A3: In many cases you can keep your existing headrail profile and simply add mounting points and square openings for the L11 Spring Box and 1″ Cord Bases. DOSRON can review your current design and propose a practical interface.

Q4: How does the L11 Cordless Spring Mechanism help with safety expectations?

A4: By moving lift cords inside the headrail and fabric and removing exposed operating cords, the L11 architecture aligns with modern expectations for child-safer, cordless window coverings at the user interface.

Q5: Is field adjustment possible if the Roman shade feels slightly over-balanced or under-balanced?

A5: Yes. Within the recommended range, installers can fine-tune cord attachment points and follow DOSRON’s guidance for pre-tension settings so that the shade feels natural to operate and holds position correctly.
